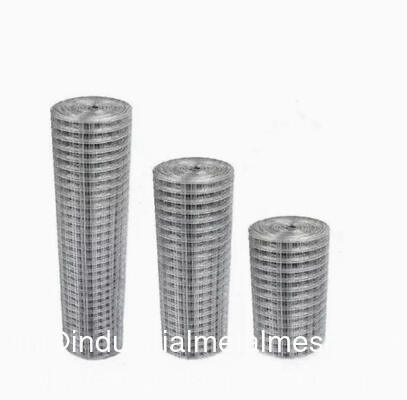

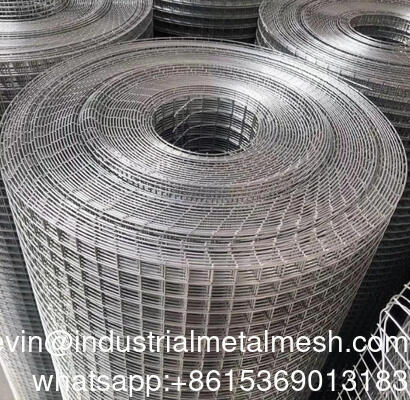

Factory Wholesale Electro And Hotdipped Galvanized PVC Coating Welded Wire Mesh For Building Material And Fence With Roll And Panels

Büyük resim : Factory Wholesale Electro And Hotdipped Galvanized PVC Coating Welded Wire Mesh For Building Material And Fence With Roll And Panels

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	QiJie
Sertifika:	ISO9001:2008, SGS, CE
Model numarası:	01WWM

Ödeme & teslimat koşulları:

Min sipariş miktarı:	50 rulo
Fiyat:	USD9.90-USD45.90
Ambalaj bilgileri:	Plastik film veya su geçirmez kağıt
Teslim süresi:	10-25 gün
Ödeme koşulları:	TT,LC,
Yetenek temini:	1000 rulo/gün

İletişim

Detaylı ürün tanımı

Malzeme:	Karbon çelik tel	Ağ Açıklığı:	12×12, 20×20, 25×25, 12×25 mm
Tel çapı:	0,4 mm - 1,5 mm	Rulo Genişliği:	0,4m,0,5m,0,6m,0,8m, 1,0m, 1,25m, 1,5m, 2,0m
Rulo Uzunluğu:	15M,30M,50M vb	Yüzey İşlem:	Sıcak daldırma galvanizli veya elektrik galvanizli
Model numarası:	xx-01001	Başvuru::	Çit Örgüsü
E-posta:	devin@industrialmetalmesh.com	WhatsApp:	+8615369013183
Vurgulamak:	Electro galvanized welded wire mesh , Hot-dipped galvanized PVC coating wire mesh , Welded wire mesh for fence panels

Factory Wholesale Electro And Hotdipped Galvanized PVC Coating Welded Wire Mesh For Building Material And Fence With Roll And Panels

Product Description:

Galvanized Welded Wire Mesh is a high-performance metal mesh made by welding high-quality low-carbon steel wires into regular grids, then undergoing hot-dip or electro-galvanization. The galvanized layer provides strong corrosion resistance, while the welded structure ensures stability, making it suitable for long-term indoor and outdoor use.

specification:

wire diameter: 22guage, 20guage, 0.7mm, 1mm, 1.2mm, 1.5mm, 2mm
length:30m,20m,2.4m,2m,or as per you request
width: 1m,48",24" 3',4',5',
Mesh Opening Size:1/2", 1/4", 1", 3/8", 1 1/2", 2", 3/4", 1"*2" etc
Roll Size: 3′*100′, 4′*100′. 3FT*100FT, 4FT*100FT, 4FT*50FT

Surface treatment: Elec-galvanized, hot-dip galvanized, pvc coated, powder coating etc.

Feature: The structure of this kind of wire mesh is strong, lasting and rust-resistant. Galvanized welded wire mesh is galvanized after welding.

Application: They are used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence.

Opening / Hole size in inch	In metric unit	Wire diameter
1/4" x 1/4"	6.4 x 6.4mm	BWG24-22
3/8" x 3/8"	10.6x 10.6mm	BWG22-19
1/2" x 1/2"	12.7 x 12.7mm	BWG23-16
5/8" x 5/8"	16x 16mm	BWG21-18
3/4" x 3/4"	19.1 x 19.1mm	BWG21-16
1" x 1/2"	25.4x 12.7mm	BWG21-16
1-1/2" x 1-1/2"	38 x 38mm	BWG19-14
1" x 2"	25.4 x 50.8mm	BWG16-14
2" x 2"	50.8 x 50.8mm	BWG15-12
2" x 4"	50.8 x 101.6mm	BWG15-12
4" x 4"	101.6 x 101.6mm	BWG15-12
4" x 6"	101.6 x 152.4mm	BWG15-12
6" x 6"	152.4 x 152.4mm	BWG15-12
6" x 8"	152.4 x 203.2mm	BWG14-12

Specification List of Welded Wire Mesh:
Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)	Wire Diameter<BWG>
1/4" x 1/4"	6.4mm x 6.4mm	22,23,24
3/8" x 3/8"	10.6mm x 10.6mm	19,20,21,22
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21,22,23
5/8" x 5/8"	16mm x 16mm	18,19,20,21,
3/4" x 3/4"	19.1mm x 19.1mm	16,17,18,19,20,21
1" x 1/2"	25.4mm x 12.7mm	16,17,18,19,20,21
1-1/2" x 1-1/2"	38mm x 38mm	14,15,16,17,18,19
1" x 2"	25.4mm x 50.8mm	14,15,16
2" x 2"	50.8mm x 50.8mm	12,13,14,15,16
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.

Welded Wire Plaster Wall Mesh

Applications:

Widely used in industry, agriculture, construction, transportation, mining, and other industries. Such as machine protective hoods, beasts and animal fences, window fences, channel fences, poultry cages, paper baskets, and decorations.

Welded Wire Plaster Wall Mesh

Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
