Factory Price Manufacturers/Fixing Steel Grating/China Heavy Duty Press-Locked Steel Grating

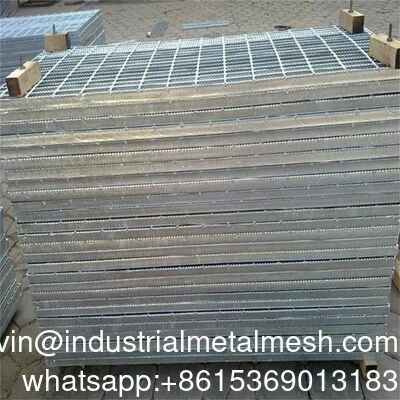

Büyük resim : Factory Price Manufacturers/Fixing Steel Grating/China Heavy Duty Press-Locked Steel Grating

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	Dimpled Hole Metal Sheets
Model numarası:	Çukurlu Delikli Saclar

Ödeme & teslimat koşulları:

Min sipariş miktarı:	10 adet
Ambalaj bilgileri:	Paletler
Teslim süresi:	15-18gün
Ödeme koşulları:	%30 TT peşin, Yüklemeden önce Bakiye
Yetenek temini:	1000 adet

İletişim

Detaylı ürün tanımı

Kimyasal Bileşim:	Fe, C, Si, Mn, S, P	Alaşım Veya Değil:	Alaşımsız
Proje Çözüm Yeteneği:	grafik tasarım, 3D model tasarımı, projelere toplam çözüm	Başvuru:	Villa
Yüzey İşlem:	Sıcak Daldırma Galvanizleme, Boyama veya İşlenmemiş	ızgara uzunluğu:	OEM / DOM
ızgara genişliği:	800 mm	Yatak çubuğu genişliği x kalınlık:	25x3mm
Rulman çubuğu şekli:	Düz, Tırtıklı I çubuk tipi Stil Çelik Izgara	Çapraz çubuk şekli:	yuvarlak, bükülmüş, çubuk şekli
Örgü Boyutu:	30x100mm	E-posta:	devin@industrialmetalmesh.com
WhatsApp:	+8615369013183
Vurgulamak:	heavy duty press-locked steel grating , galvanized steel grating manufacturers , fixing steel grating factory price

Factory Price Manufacturers/Fixing Steel Grating/China Heavy Duty Press-Locked Steel Grating

Galvanized Steel Grating

Steel Grating is a specialized water treatment equipment that can continuously and automatically intercept and remove various shapes of debris in the fluid, and can be widely used in urban sewage treatment. It can also be used as a front-end screening equipment in wastewater treatment processes in industries such as textiles, food processing, papermaking, leather, etc. It is one of the most advanced solid-liquid screening equipment.

Specification

Learn more about the main components of metal bar grating
Material	Carbon Steel , Stainless Steel
surface treatment	Hot dip galvanizing,Painting,Spray coating,self colour
Product Process	Fully automatic pressure welding , manual welding
Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
Bearing Bar	US standard: 25.4 x 4.8 mm 31.8 x 4.8 mm 38.1 x 4.8 mm 25.4 x 6.4 mm 31.8 x 6.4 mm 38.1 x 6.4 mm 25.4 x 3.2 mm 31.8 x 3.2 mm 38.1 x 3.2 mm etc
Bearing Bar Pitch	12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
Bearing Bar Pitch	US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
Twisted Cross Bar Pitch	38.1, 40, 50, 60, 76, 80, 100, 101.6, 120mm, etc.
Steel Grade	ASTM A36, A1011, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc
Grating Standard	China: YB/T 4001.1-2007 USA: ANSI/NAAMM(MBG531-88) UK: BS4592-1987 Australia: AS1657-1985 Japan: JIS Russia:GOST
Russian Standard
Common spacing of load-bearing flat steel:	11, 22, 33, 44
Common spacing for connecting flat steel:	11, 22, 33, 66
Surface treatment	Plating thickness ≥70 μm
Custom specifications available upon request

Advantages:
high strength, anti-slip, ventilation and light transmission properties.

Packaging Details

Standard Grating Packing Method:
1. Bandage and Paperboard: Generally applies to neat steel plate;
Package Type: 2. Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
3. Steel Pallet: Traditional export packing.

Steel grating is widely used in the following fields:
1. Petrochemical, power and metallurgy, sewage treatment and other industrial fields.
2. Drainage systems, stairs and railings, commercial decoration and other municipal and architectural fields.
3. Bridges and tunnels, ports and ships and other transportation and marine engineering.
4. Garbage treatment plants, agricultural facilities and other environmental protection and agricultural fields.

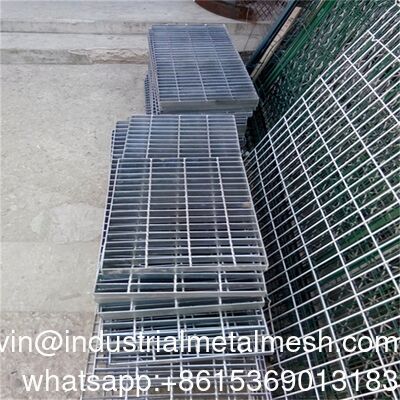

steel grating Factory Price Manufacturers/Fixing Steel Grating/China Heavy Duty Press-Locked Steel Grating 1

Key Features

· Exceptional Strength-to-Weight Ratio:Engineered to support heavy loads while remaining relatively lightweight, reducing structural support requirements.
· Superior Safety:Serrated or plain surfaces provide excellent slip resistance, even in wet or oily conditions. The open design allows passage of light, air, and liquids, minimizing puddles and ice accumulation.
· Long-Lasting Durability:Manufactured from high-quality carbon steel or stainless steel, with optional hot-dip galvanizing, powder coating, or other finishes for outstanding corrosion resistance.
· Low Maintenance & Easy Installation:The modular design allows for quick cutting, fitting, and installation with standard tools. Its open structure prevents the accumulation of dirt, debris, and snow, minimizing cleaning needs.
· Versatile & Aesthetic:Available in various materials, surface types, and finishes to meet functional requirements and architectural aesthetics.
