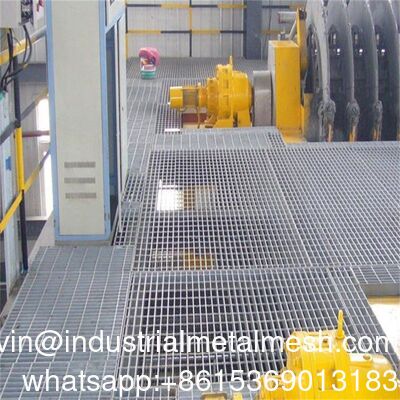

High Quality Customizable Drainage Steel Grating

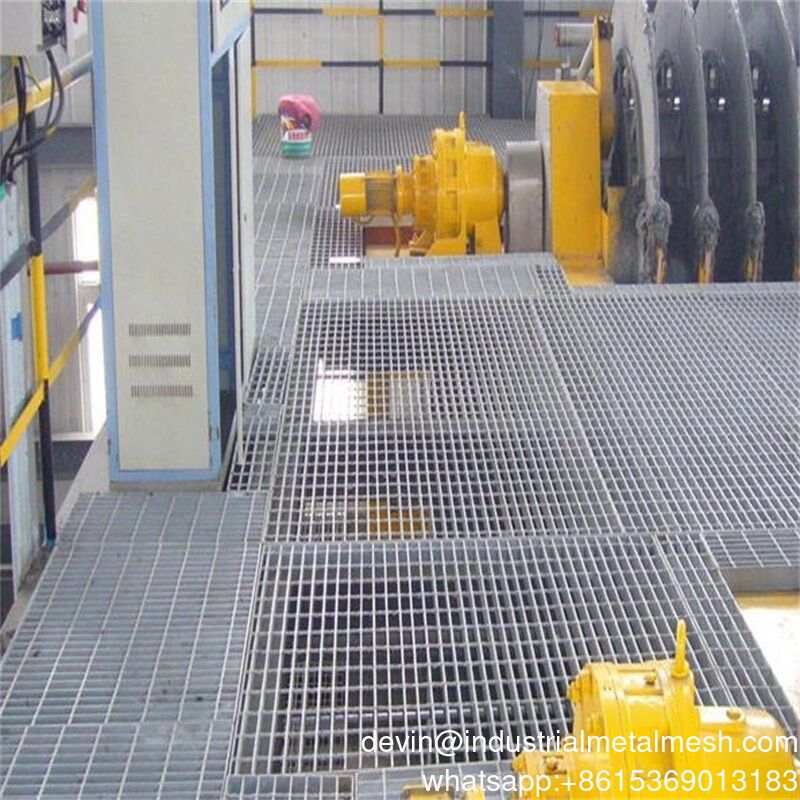

Büyük resim : High Quality Customizable Drainage Steel Grating

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	Dimpled Hole Metal Sheets
Model numarası:	Çukurlu Delikli Saclar

Ödeme & teslimat koşulları:

Min sipariş miktarı:	10 adet
Ambalaj bilgileri:	Paletler
Teslim süresi:	15-18gün
Ödeme koşulları:	%30 TT peşin, Yüklemeden önce Bakiye
Yetenek temini:	1000 adet

İletişim

Detaylı ürün tanımı

Kimyasal Bileşim:	Fe, C, Si, Mn, S, P	Alaşım Veya Değil:	Alaşımsız
Proje Çözüm Yeteneği:	grafik tasarım, 3D model tasarımı, projelere toplam çözüm	Başvuru:	Villa
Yüzey İşlem:	Sıcak Daldırma Galvanizleme, Boyama veya İşlenmemiş	ızgara uzunluğu:	OEM / DOM
ızgara genişliği:	800 mm	Yatak çubuğu genişliği x kalınlık:	25x3mm
Rulman çubuğu şekli:	Düz, Tırtıklı I çubuk tipi Stil Çelik Izgara	Çapraz çubuk şekli:	yuvarlak, bükülmüş, çubuk şekli
Örgü Boyutu:	30x100mm	E-posta:	devin@industrialmetalmesh.com
WhatsApp:	+8615369013183
Vurgulamak:	Customizable steel drainage grating , Galvanized steel grating , Durable steel grating

High Quality Customizable Drainage Steel Grating

Galvanized Steel Grating

Galvanized Steel Grating, is extremely strong and durable for all load bearing applications and is primarily used for pedestrian and light vehicle traffic. Our galvanized coating process provides for years of corrosion resistance in acidic and high moisture environments.

Steel grating is available in varied form suitable for different application and overall load conditions. Hot dip galvanizing or painting can make them in excellent appearance, durability and enhanced economy. Galvanized steel grating is widely used in Power Station, Chemical Industry, Oil & Gas Industry, Boiler Plant, Mining and Refinery, etc.

Introducing our groundbreaking Premium Steel Grating-a marvel of engineering precision. With its robust serrated bearing bar, this product is designed to excel in both performance and aesthetics. The intelligent structural design makes it the perfect choice where high load-bearing capability and visual appeal are paramount. Crafted meticulously from a specified size of serrated steel, it undergoes a series of precise processes involving slotting, inserting, welding, and finishing. The result is an outstanding product that effortlessly manages substantial loads, making it a reliable solution for heavy-duty industrial platforms with enhanced safety. Our surface treatments are versatile to suit your needs, offering galvanizing, painting, or dipping.

Specification

Product Name	Customized Anti-slip Serrated Steel Grating
Material	Mild Steel(Low Carbon Steel),S235,S275JR,A36,or Stainless Steel SS304,SS316 etc.
Surface treatment	Hot dipped galvanized, polished or untreated	Grate size	as customer's request
Bearing bar width x thickness	25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,...75x10mm
Bearing bar pitch	12.5,15,20,23.85,25,30,30.16,30.3,34.3,35,40,41,60mm. US standard:1"x3/16",11/4"x3/16",11/2"x3/16",1"x 1/4", 11/4"×1/4",11/2"x 1/4"etc.
Cross bar pitch	38,50,76,100,101.6mm or custom

Pitch of Bearing bar	Cross-bar Pitch	Specification of bearing bar(widthxthickness)
		20×3	25×3	32×3	40×3	20×5	25×5
30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
	50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
	50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
60	50		G253/60/50	G253/60/50	G403/60/50	G205/60/50	G255/60/50
Pitch of Bearing bar	Cross-bar Pitch	Specification of bearing bar(widthxthickness)
		32×5	40×5	45×5	50×5	55×5	60×5
30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
	50	G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
	50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
60	50	G325/60/50	G405/60/50	G455/60/50	G505/60/50	G555/60/50	G605/60/50

Note: We offer the adaptability of customized sizes to meet your specific requirements.

bearing bar types:
surface treatment: mill finish,hot dip galvanized,painted

Material	Carbon Steel, Stainless Steel, Aluminum
Surface treatment	Hot dipped galvanized, Spray painting, Polished and powder coated
Bearing bar type	Plain(Flat) bar, Serrated bar, I-bar, etc.
Common specification
Bearing bar pitch (mm)	Cross bar pitch (mm)	Bearing bar size (WSG_Height×Thickness_Bearing bar pitch_Cross bar pitch)
30	100	WSG_203/253/323/403/205/325/405/455/505/555_30_100
	50	WSG_203/253/323/403/205/325/405/455/505/555_30_50
40	100	WSG_203/253/323/403/205/325/405/455/505/555_40_100
	50	WSG_203/253/323/403/205/325/405/455/505/555_40_50
60	50	WSG_203/253/323/403/205/325/405/455/505/555_60_50
If you have any questions regarding the dimensions or specific specifications, please feel free to contact us immediately.

Advantages:
high strength, anti-slip, ventilation and light transmission properties.

Packaging Details

Standard Grating Packing Method:
1. Bandage and Paperboard: Generally applies to neat steel plate;
Package Type: 2. Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
3. Steel Pallet: Traditional export packing.

Steel grating is widely used in the following fields:
1. Petrochemical, power and metallurgy, sewage treatment and other industrial fields.
2. Drainage systems, stairs and railings, commercial decoration and other municipal and architectural fields.
3. Bridges and tunnels, ports and ships and other transportation and marine engineering.
4. Garbage treatment plants, agricultural facilities and other environmental protection and agricultural fields.

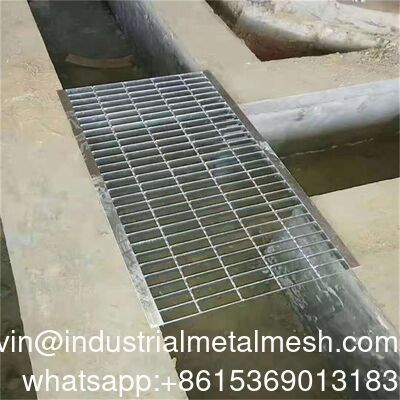

steel grating High Quality Customizable Drainage Steel Grating 1

Key Features

· Exceptional Strength-to-Weight Ratio:Engineered to support heavy loads while remaining relatively lightweight, reducing structural support requirements.
· Superior Safety:Serrated or plain surfaces provide excellent slip resistance, even in wet or oily conditions. The open design allows passage of light, air, and liquids, minimizing puddles and ice accumulation.
· Long-Lasting Durability:Manufactured from high-quality carbon steel or stainless steel, with optional hot-dip galvanizing, powder coating, or other finishes for outstanding corrosion resistance.
· Low Maintenance & Easy Installation:The modular design allows for quick cutting, fitting, and installation with standard tools. Its open structure prevents the accumulation of dirt, debris, and snow, minimizing cleaning needs.
· Versatile & Aesthetic:Available in various materials, surface types, and finishes to meet functional requirements and architectural aesthetics.
