6X6 Galvanized Welded Wire Mesh for Construction Fence Panel

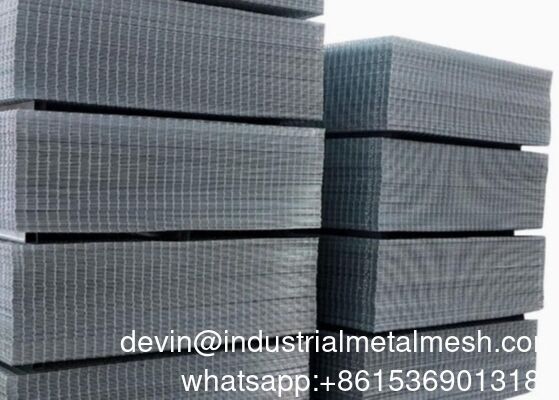

Büyük resim : 6X6 Galvanized Welded Wire Mesh for Construction Fence Panel

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	QiJie
Sertifika:	ISO9001:2008, SGS, CE
Model numarası:	01WWM

Ödeme & teslimat koşulları:

Min sipariş miktarı:	50 rulo
Fiyat:	USD9.90-USD45.90
Ambalaj bilgileri:	Plastik film veya su geçirmez kağıt
Teslim süresi:	10-25 gün
Ödeme koşulları:	TT,LC,
Yetenek temini:	1000 rulo/gün

İletişim

Detaylı ürün tanımı

Malzeme:	Karbon çelik tel	Ağ Açıklığı:	12×12, 20×20, 25×25, 12×25 mm
Tel çapı:	0,4 mm - 1,5 mm	Rulo Genişliği:	0,4m,0,5m,0,6m,0,8m, 1,0m, 1,25m, 1,5m, 2,0m
Rulo Uzunluğu:	15M,30M,50M vb	Yüzey İşlem:	Sıcak daldırma galvanizli veya elektrik galvanizli
Model numarası:	xx-01001	Başvuru::	Çit Örgüsü
E-posta:	devin@industrialmetalmesh.com	WhatsApp:	+8615369013183
Vurgulamak:	6x6 galvanized welded wire mesh , welded wire mesh fence panel , galvanized construction fence mesh

6X6 Galvanized Welded Wire Mesh for Construction Fence Panel

Product Description:

The welded wire mesh features a uniform and sturdy structure, presented in rolls with a metallic silver finish. It consists of interwoven metal wires, typically galvanized steel, forming a grid pattern with consistent square or rectangular openings. The mesh is neatly coiled into cylindrical rolls, making it easy to store, transport, and unroll for use. The wires are welded at each intersection, ensuring a stable and durable construction. The overall appearance is industrial yet precise, with the galvanized coating giving it a shiny, corrosion-resistant look. This design allows it to blend into various applications, from construction sites to agricultural settings, while maintaining a robust and reliable form.

specification:

wire diameter: 22guage, 20guage, 0.7mm, 1mm, 1.2mm, 1.5mm, 2mm
length:30m,20m,2.4m,2m,or as per you request
width: 1m,48",24" 3',4',5',
Mesh Opening Size:1/2", 1/4", 1", 3/8", 1 1/2", 2", 3/4", 1"*2" etc
Roll Size: 3′*100′, 4′*100′. 3FT*100FT, 4FT*100FT, 4FT*50FT

Surface treatment: Elec-galvanized, hot-dip galvanized, pvc coated, powder coating etc.

Feature: The structure of this kind of wire mesh is strong, lasting and rust-resistant. Galvanized welded wire mesh is galvanized after welding.

Application: They are used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence.

Galvanized Fencing Mesh:
Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)	Wire Diameter<BWG>
2" x 3"	50mm x 75mm	2.0mm,2.5mm,1.65mm
3" x 3"	75mm x 75mm	2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
2" x 4"	50mm x 100mm	2.11mm,2.5mm
4" x 4"	100mm x 100mm	2.0mm,2.5mm
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.

Specification List of Welded Wire Mesh:
Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)	Wire Diameter<BWG>
1/4" x 1/4"	6.4mm x 6.4mm	22,23,24
3/8" x 3/8"	10.6mm x 10.6mm	19,20,21,22
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21,22,23
5/8" x 5/8"	16mm x 16mm	18,19,20,21,
3/4" x 3/4"	19.1mm x 19.1mm	16,17,18,19,20,21
1" x 1/2"	25.4mm x 12.7mm	16,17,18,19,20,21
1-1/2" x 1-1/2"	38mm x 38mm	14,15,16,17,18,19
1" x 2"	25.4mm x 50.8mm	14,15,16
2" x 2"	50.8mm x 50.8mm	12,13,14,15,16
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.

Welded Wire Plaster Wall Mesh

Applications:

Plaster mesh is widely used as a reinforcing material to protect the internal and external walls,floors and ceilings against cracking in the industrial plants and other architectures.Plaster Welded Wire Mesh has a wide scope. It can be used for the building inside and outside plaster reinforcement. As an essential piece of plastering work, it creates lasting plaster coating for absolutely all surfaces of concrete and brick to wood, and even plaster ceilings. Before plastering, the welded mesh must be mounted on wall by a solid dowel-nails or anchor bolts, which makes the plaster work easier. The Plaster Welded Wire Mesh makes the plaster wall surface smooth and no crack, also excludes the impact of external factors on the wall.

Welded Wire Plaster Wall Mesh

Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
