High-Quality Welded Wire Mesh Panels for Construction Projects

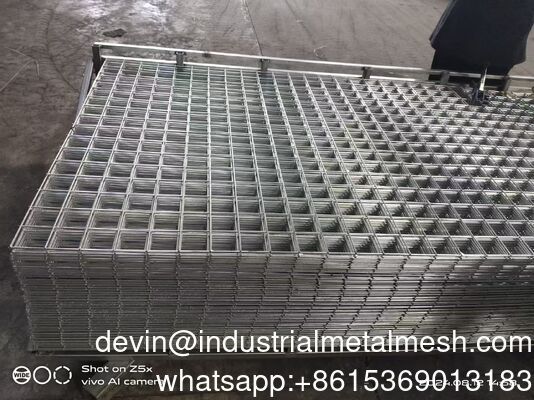

Büyük resim : High-Quality Welded Wire Mesh Panels for Construction Projects

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	QiJie
Sertifika:	ISO9001:2008, SGS, CE
Model numarası:	01WWM

Ödeme & teslimat koşulları:

Min sipariş miktarı:	50 rulo
Fiyat:	USD9.90-USD45.90
Ambalaj bilgileri:	Plastik film veya su geçirmez kağıt
Teslim süresi:	10-25 gün
Ödeme koşulları:	TT,LC,
Yetenek temini:	1000 rulo/gün

İletişim

Detaylı ürün tanımı

Malzeme:	Karbon çelik tel	Ağ Açıklığı:	12×12, 20×20, 25×25, 12×25 mm
Tel çapı:	0,4 mm - 1,5 mm	Rulo Genişliği:	0,4m,0,5m,0,6m,0,8m, 1,0m, 1,25m, 1,5m, 2,0m
Rulo Uzunluğu:	15M,30M,50M vb	Yüzey İşlem:	Sıcak daldırma galvanizli veya elektrik galvanizli
Model numarası:	xx-01001	Başvuru::	Çit Örgüsü
E-posta:	devin@industrialmetalmesh.com	Whatsapp:	+8615369013183
Vurgulamak:	welded wire mesh panels for construction , heavy-duty welded wire mesh , construction-grade welded wire mesh panels

High-Quality Welded Wire Mesh Panels for Construction Projects

Welded wire mesh is made of low carbon steel wire, which has galvanized and PVC-coated surfaces, which have great anti-corrosion, anti-rust, and weather resistance. Firm structure and high tensile strength are also the features of welded wire mesh, which makes it widely used to make gabion, plaster walls, animal cages, and plant trellis.
Welded wire mesh can be divided into 2 types according to different applications: welded mesh panel and welded mesh roll, and welded mesh roll has better flexibility. We support customization of other requirements.
The core advantages of welded wire mesh are high strength, corrosion resistance, convenient installation, beautiful and practical, which can not only meet functional requirements, but also adapt to diverse scenarios. Choosing different treatment processes (such as zinc plating, stainless steel, plastic coating) and mesh density according to specific uses can maximize its value.
They are usually made of horizontal and vertical steel bars or wires and the welding points are usually fixed by resistance welding or arc welding to form a grid structure with certain strength and rigidity. Welded mesh panel is widely used, such as machinery, fences, guardrails, etc.

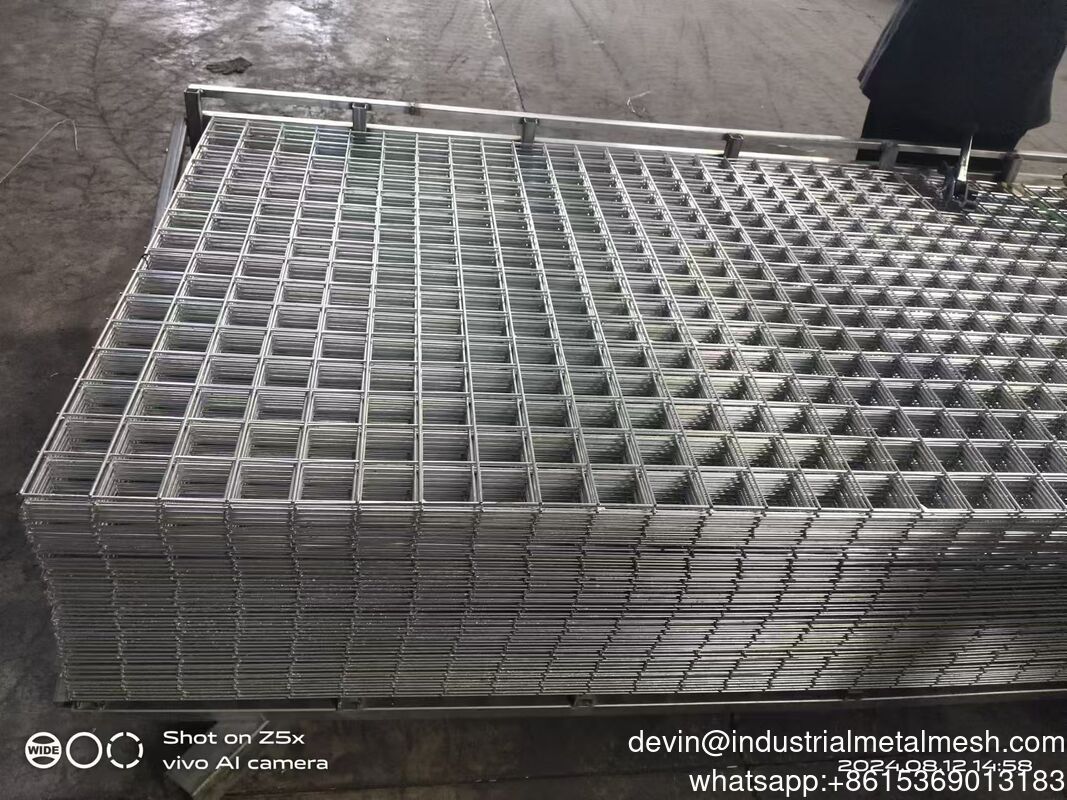

High-Quality Welded Wire Mesh Panels for Construction Projects 0

Specification
Opening		Wire Diameter
Inch	metric Unit(mm)	Wire Diameter
1"x1"	25mmx25mm	2.5mm,2.0mm,1.8mm,1.6mm
2"x2"	50mmx50mm	2.5mm,2.0mm,1.8mm,1.6mm
2"x3"	50mmx70mm	6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm
2"x4"	50mmx100mm	6.0mm,5.0mm,4.0mm,3.0mm,2.0mm
2"x6"	50mmx150mm	6.0mm,5.0mm,4.0mm,3.0mm
2"x8"	50mmx200mm	6.0mm,5.0mm,4.0mm,3.0mm
3"x3"	75mmx75mm	6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm,1.6mm
3"x4"	75mmx100mm	6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm
4"x4"	100mmx100mm	6.0mm,5.0mm,4.0mm,3.0mm
5"x5"	125mmx125mm	6.0mm,5.0mm,4.0mm,3.0mm
6"x6"	150mmx150mm	6.0mm,5.0mm,4.0mm,3.0mm
Technical Note:
1.Standard Panel Length:0.5m-5.8m;Width:0.5m-2.4m 2.Special size available at request

Features of Welded Wire Mesh
Easily workable
Solid construction
Extremely versatile
Easy to install
Lightweight
Can have a low resistance to wind loads
Easily cut to fit

Applications of Welded Wire Mesh
Welded wire mesh's combination of low cost, ease of use, and versatility make it a popular choice for many different applications.
1. Fences and gates: You'll find welded wire mesh fences and gates installed at residences and all types of commercial and industrial
properties.
2. Architectural uses such as building facades: Although welded wire fabric is known for its strength and durability, architects and designers
often use it to enhance aesthetic appeal.
3. Architectural Wire Mesh for Green Building Design: Using welded wire mesh can help achieve LEED(Leadership in Energy and Environmental
Design) credits and certification.
4. Infill panels for railings and divider walls: Woven wire infill panels are used often as partitions or divider walls due to its clean and
sometimes modern look.
5. Animal control: Farmers, ranchers, and animal control professionals use fencing made from welded wire mesh to contain livestock and
stray animals.
6. Screens for doors and windows: Welded wire mesh screens provide a sturdy material and effective insect control when installed in windows.
7. Machine guards: Use welded wire cloth guards for industrial machinery.
8. Shelving and partitions: Welded wire mesh's strength and stability enable it to serve as shelving for storing heavy products and as partitions
that promote visibility.
9. Behind-the-scenes use in plumbing, walls, and ceilings: Wire mesh provides support for pipes installed in the walls and ceilings of a structure.
10. Gardens to keep bugs away from their plants and vegetables: Mesh with a low open area percentage serves as a screen that prevents
insects from destroying plants.
11. Agriculture: To serve as barrier fencing, corn cribs, livestock shade panels, and temporary holding pens.

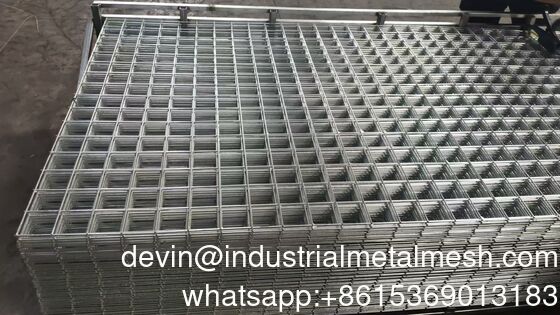

High-Quality Welded Wire Mesh Panels for Construction Projects 1
