304 316 Stainless Steel Rope Mesh/Cable Mesh/Green Wall and Decorative Wire Mesh for Security

304 316 Stainless Steel Rope Mesh/Cable Mesh/Green Wall and Decorative Wire Mesh for Security

Büyük resim :  304 316 Stainless Steel Rope Mesh/Cable Mesh/Green Wall and Decorative Wire Mesh for Security

Ürün ayrıntıları:
Menşe yeri: Hebei, Çin
Marka adı: QIJIE
Sertifika: CE,SGS,ISO
Model numarası: SW-004
Ödeme & teslimat koşulları:
Min sipariş miktarı: 10 metrekare
Ambalaj bilgileri: tahta sandık
Teslim süresi: 10-15 iş günü
Ödeme koşulları: %30 TT peşin, Yüklemeden önce Bakiye
Yetenek temini: 3000 m2/ay
Detaylı ürün tanımı
Malzeme: paslanmaz çelik tel Tip: Halat Mesh, Yüksük Tipi veya Düğümlü Tip
Başvuru: Ağı Koruma Örgü stili: 1
Teknik: Dokuma Model numarası: Çelik Halat Hasır
İşleme Hizmeti: Örgü hammadde: Paslanmaz Çelik 304 316, Galvanizli Tel
Aksesuarlar: Hepsi sağlanabilir E-posta: devin@industrialmetalmesh.com
whatsapp: +8615369013183
Vurgulamak:

304 stainless steel rope mesh

,

316 stainless steel security wire mesh

,

decorative stainless steel cable mesh

304 316 Stainless Steel Rope Mesh/Cable Mesh/Green Wall and Decorative Wire Mesh for Security​

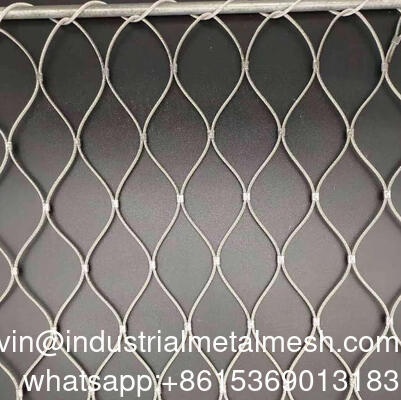

Flexible stainless steel rope nets are made of various materials such as AISI304, AISI304L, AISI316/AISI316L, including knotted nets and ferrule nets. The nets can be used in vertical or horizontal directions. Common mesh sizes range from 20mmx20mm to 300mmx300mm, and stainless steel rope mesh diameters range from 1.0mm-4.0mm. We can customize the braid openings, wire diameters and sizes infinitely to meet your exact specifications. Contact us and let architects and designers recommend specifications corresponding to various loads and uses to meet your needs.

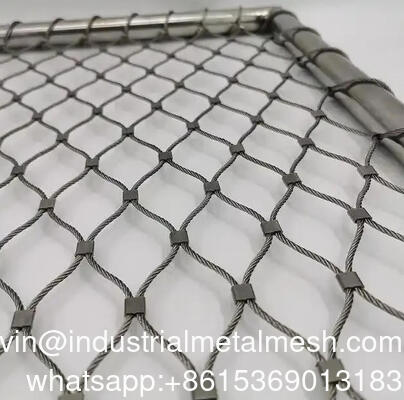

Ferrule Rope Mesh Have two types:
Closed type and open type ferrule rope mesh
Features of closed type: The mesh has multiple steel wire ropes combined together, and it is relatively stronger but there are multiple joint at one end of the closure.
Features of open types: the whole mesh can be made with a steel wire rope, which is convenient for installation and has a beautiful overall effect.



Stainless Steel Rope Mesh Specification:

Material: SS304, 304L, 316, 316L

Structure: 7x7 and 7x19

Rope diameter: 1.0, 1.2, 1.5, 1.6, 2.0, 2.4, 2.5, 3.0, 3.2, 4.0mm etc.

Hole Size: 20x20, 25.4x25.4, 30x30, 35x35, 38x38, 40x40, 45x45, 51x51, 60x60, 70x70, 76x76, 80x80, 90x90, 100x100, 120x120, 150x150mm etc.

Material
stainless steel 304, 304L, 316, 316L
Surface treatment
primary color or black oxide finish
Cable diameter
1.0-5.0 mm
Mesh opening sizes
25-200 mm
Mesh opening angles
20°, 30°, 60°, 70°, 75°. Mesh aperture at 60° as standard opening.
Construction of wire cable
7 × 7, 7 × 19
Connection
ferruled or knotted
Ordering
specific to order, according to the project.
Application
zoo mesh, green facades, aviary mesh, decorative mesh, fall protection netting, bridge cable mesh, stairwell guidance, etc.



Specification
Structure
Diameter(mm)
Aperture(mm)
7*7
1.0
10*10
7*7
1.2
15*15
7*7
1.2
20*20
7*7
1.5
25*25
7*7/7*19
2.0
30*30, 50*50
7*7/7*19
2.5
50*50, 80*80
7*7/7*19
3.0
50*50, 80*80,100*100
7*7/7*19
3.5
80*80,100*100, 150*150
7*7/7*19
4.0
100*100, 150*150, 200*200
Length: 1-100m
Width:1-10m

304 316 Stainless Steel Rope Mesh/Cable Mesh/Green Wall and Decorative Wire Mesh for Security 0

Applications:
1. Steel Mesh Balustrade - bridge, stair, balcony, path
2. Cable Mesh - Excellent Solution to Safety
3. Safety Net - Structural Measure to Prevent Suicide
4. Helipad Safety Net - Modular Heliport Webbing
5. Cable Zoo Mesh - Solution to Enclosing Most Animals
6. Aviary Netting - Lightweight, Durable and Long Lasting
7. Green Facade - Cable System for Most Climbing Plants





Advantages

· Durable and Corrosion-Resistant: This stainless steel rope mesh is made from 7x19 stainless steel wire, ensuring a durable and long-lasting product that resists corrosion and withstands harsh environments.
· Customizable Size and Length: The product is available in various sizes and lengths, allowing customers to choose the perfect fit for their specific needs, from 30m to a fully customizable option.
· Versatile Applications: This stainless steel rope mesh is suitable for various applications, including building and construction, making it an ideal choice for customers who require a versatile product.
· Easy to Install: The rope mesh features a plain weave style and a square hole shape, making it easy to install and assemble, saving customers time and effort.
· Fast Delivery and Competitive Pricing: With a delivery time of 8-14 days and a minimum order quantity of 1 roll, customers can receive their product quickly and at a competitive price, making it an excellent value for money.

304 316 Stainless Steel Rope Mesh/Cable Mesh/Green Wall and Decorative Wire Mesh for Security 1



304 316 Stainless Steel Rope Mesh/Cable Mesh/Green Wall and Decorative Wire Mesh for Security 2
