Galvanized /Stainless Steel Wire Mesh/Mild Steel cloth for Filtering

Büyük resim : Galvanized /Stainless Steel Wire Mesh/Mild Steel cloth for Filtering

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	QIJIE
Sertifika:	ISO9001
Model numarası:	QJ-004

Ödeme & teslimat koşulları:

Min sipariş miktarı:	50 rulo
Fiyat:	discuss
Ambalaj bilgileri:	Gereksinim olarak
Teslim süresi:	15 - 20 gün
Ödeme koşulları:	TT/LC
Yetenek temini:	Haftada 1000 Rulo

İletişim

Detaylı ürün tanımı

Teknik:	Dokuma	Malzeme:	Paslanmaz Çelik Tel,316,304
Örgü stili:	Düz/Dimi Dokuma	Ürün adı:	Kare 4X4 Dokuma Un 100 Mikron Paslanmaz Çelik Hasır
Tel Çapı:	Gereklilik	Genişlik:	Genellikle 1M
E-posta:	devin@industrialmetalmesh.com	whatsapp:	+8615369013183
Vurgulamak:	galvanized steel wire mesh for filtering , stainless steel woven wire mesh , mild steel cloth filter mesh

Galvanized /Stainless Steel Wire Mesh/Mild Steel cloth for Filtering

A kind of ultra-thin woven stainless steel wire mesh with uniform opening and good firmness. The uses of carefully selected special stainless alloy materials and the most advanced weaving technology adopted ensure the very compact weaving structure is achieved and the thickness of the wire mesh is within the allowed tolerance range. Hence the precision of the wire mesh is further enhanced for high precision printing requirements.

stainless steel woven wire mesh detail:
material: SUS304, SUS316L,SUS316L, SUS310
hole size: 3mesh to 500mesh
wire diameter: from 0.03mm to 2.0mm
mesh edge: in open edges, in locked edges
packing: in roll, in sheet, in disc.
used: for making wire mesh basket, for filtering, for decorative wire mesh and so on

Stainless Steel Wire Mesh

Mesh number: 1 mesh--3500 mesh.

Material: SUS302, 201, 304, 304L, 316, 316L, 310, 310S, etc.

Use:

1. Used for screening and filtration under acid and alkali environmental conditions. In the petroleum industry, it is used as a mud net, in the chemical and chemical fiber industry, as a screen filter, and in electroplating...
2 Used in mining, petroleum, chemical industry, food, medicine, machinery manufacturing and other industries...

Features:
1. Uniform mesh, good production reproducibility;
2. Good resistance to acid, alkali and corrosion;
3. High strength,tensile strength, toughness and wear resistance, long service life;
4. Uniform structure, non - crimp, easy to use, uniform thickness, antistatic;
5. High temperature oxidation resistance, 304 stainless steel screen nominal tolerance temperature of 800 degrees Celsius, 310S stainless steel screen name it can withstand temperatures up to 1150 degrees Celsius

Stainless steel Wire Mesh Specification

Specification List of Ultra-thin Stainless Steel Wire Mesh
Mesh/Inch	Wire Dia mm d	Mesh Opening mm w	Opening Area A %	Weight (kg/sq.m)	Mesh /Inch	Wire Dia mm d	Mesh Opening mm w	Opening Area A %	Weight (kg/sq.m)
16	0.040	1.547	95%	0.013	120	0.060	0.151	51%	0.216
25	0.025	0.991	87%	0.008	130	0.043	0.152	61%	0.120
32	0.025	0.768	94%	0.010	150	0.050	0.119	50%	0.188
36	0.028	0.677	92%	0.014	150	0.028	0.141	70%	0.059
42	0.036	0.568	53%	0.027	160	0.043	0.115	53%	0.148
50	0.030	0.478	89%	0.023	160	0.035	0.123	61%	0.098
56	0.040	0.413	83%	0.045	180	0.030	0.111	62%	0.081
63	0.040	0.363	81%	0.050	200	0.036	0.091	51%	0.130
70	0.065	0.297	67%	0.148	200	0.028	0.099	61%	0.078
80	0.063	0.254	64%	0.159	220	0.026	0.089	60%	0.074
80	0.050	0.267	71%	0.10	230	0.030	0.080	53%	0.104
82	0.065	0.244	62%	0.173	250	0.030	0.072	50%	0.113
82	0.053	0.256	69%	0.115	260	0.022	0.076	60%	0.063
90	0.060	0.222	65%	0.162	280	0.025	0.066	53%	0.088
100	0.050	0.196	62%	0.125	300	0.028	0.057	45%	0.116
110	0.060	0.170	55%	0.198	325	0.025	0.053	46%	0.102

Chemical composition of 316L stainless steel wire cloth(%)

C ≤	Si ≤	Mn ≤	P ≤	S ≤	Cr	Ni	Mo
0.03	1.00	2.00	0.045	0.030	16.0-18.0	10.0-14.0	2.0-3.0

Various standards of stainless steel 316L wire mesh

AISI	UNS	DIN	JIS	GB/T
316L	S31603	1.4404	SUS 316L	022Cr17Ni12Mo2

Key properties of ss316 wire mesh

Material	SUS 316L stainless steel wire
Color	Silver
Weave type	Plain dutch weave, Twill dutch weave and crimped
Mesh count	2 mesh – 500x3500mesh
Aperture	0.001mm – 25mm
Roll size	0.914mx30m, 1mx30m, 1.2mx30m, 2mx30m, etc
MOQ	1 square meter
Free Sample	A4 size of stock size
Package	Inside a paper tube, wrapped with moisture-proof paper, and then put into a box.

316L stainless steel mesh roll characteristics

Marine grade stainless steel.
Good machinability.
High strength and high toughness.
Good thermal stability.
Excellent corrosion resistance, especially in strong corrosive media such as chlorides.

316L stainless steel wire mesh application

For various filtration and separation requirements in the chemical industry, petroleum, Mining, shipbuilding, mining, food, .
Heat exchangers.
Decoration mesh.
Insect screen/mosquito screen.
Aerospace.
Waster water and ballast water filter.
Seawater treatment equipment.
Wire Mesh Basket Manufacturing.
Screen printing.

Other things you need to know about 316 stainless steel mesh

1. How to order?

When ordering the 316L stainless steel wire cloth, please specify the mesh count, wire diameter, hole size, weave type, mesh width, and length.

For example:
SS316L Screen Mesh 120 x 3′ x 100′ x 0.08mm Inquiry
SS316L Screen Mesh 100 x 3′ x 100′ x 0.1mm Inquiry.

More specifically such as:
Stainless steel mesh 316L, DTW 200/600, 40inch, 30meter , 1 roll
SUS 316L mesh, DTW 10 micron 200 x 1400 mesh, 0.07/ 0.04mm, size: 1m x 30m, 1 roll

2. Deep processing services

The wire mesh ss316 can be cut into different shapes of sheets, It can also be processed into filter tubes and filter caps.
For example, SS316L Screen Mesh 20 x 4 feet x 6 feet Long sheet, or SS316L Screen Mesh 60 x 59mm diameter Circular.
It can also be slit, for example, 200 mesh ss316 wire mesh can slit into 500mm width, and there will be 2 cutting rolls from 1m width 200 mesh 316 stainless steel mesh.

3. Detail application example

325 mesh 0.035mm wire diameter twill weave 316L stainless steel mesh used for stainless steel filter cartridge production.
300 mesh, 350 mesh, 400 mesh, 500 mesh Plain weave 316L stainless steel wire mesh used as screen printing mesh in Glass, ceramics, metals, plastics, rubber, and printed circuits industries.
24/110 mesh Dutch weave 316L stainless steel mesh used in the production of sunflower oil.

4. Specifications mesh count of SUS 316L wire mesh

Plain /Twill Square Woven Mesh
Mesh count	Wire Dia		Width of Opening		Open area
Mesh count	Inches	mm	Inches	mm	%
1X1	0.157	4	0.84	21.4	71
4X4	0.063	1.6	0.187	4.75	56
8X8	0.043	1.1	0.08	2.08	42
10X10	0.039	1	0.06	1.54	36
12X12	0.023	0.584	0.06	1.52	51.8
14X14	0.023	0.584	0.048	1.22	45.2
16X16	0.018	0.457	0.0445	1.13	50.7
18X18	0.017	0.432	0.0386	0.98	48.3
20X20	0.016	0.406	0.034	0.86	46.2
24X24	0.014	0.356	0.0277	0.7	44.2
30X30	0.012	0.305	0.0213	0.54	40.8
35X35	0.011	0.279	0.0176	0.45	37.9
40X40	0.01	0.254	0.015	0.38	36
50X50	0.008	0.203	0.012	0.31	36

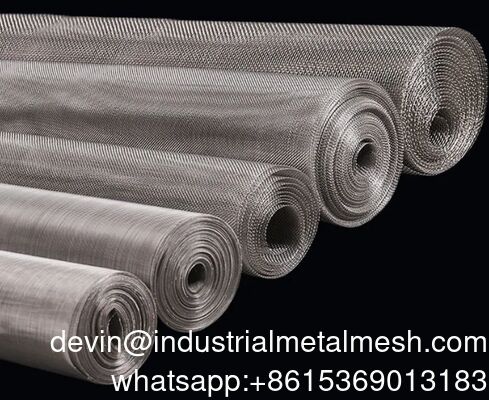

Galvanized /Stainless Steel Wire Mesh/Mild Steel cloth for Filtering 1

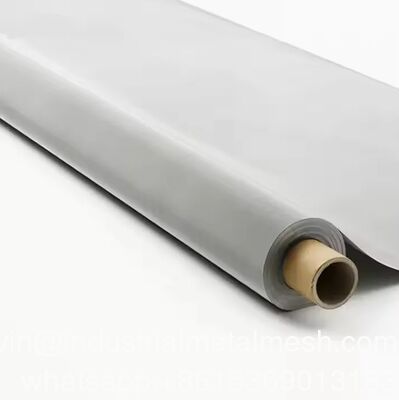

Galvanized /Stainless Steel Wire Mesh/Mild Steel cloth for Filtering 2

Galvanized /Stainless Steel Wire Mesh/Mild Steel cloth for Filtering 3

Galvanized /Stainless Steel Wire Mesh/Mild Steel cloth for Filtering 4
