2-400 Mesh Stainless Steel Wire Mesh Filter Screen/micro Screen Mesh Filter/ Micron Stainless Steel Mesh Screen(Factory)

Büyük resim : 2-400 Mesh Stainless Steel Wire Mesh Filter Screen/micro Screen Mesh Filter/ Micron Stainless Steel Mesh Screen(Factory)

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	QIJIE
Sertifika:	ISO9001
Model numarası:	QJ-004

Ödeme & teslimat koşulları:

Min sipariş miktarı:	50 rulo
Fiyat:	discuss
Ambalaj bilgileri:	Gereksinim olarak
Teslim süresi:	15 - 20 gün
Ödeme koşulları:	TT/LC
Yetenek temini:	Haftada 1000 Rulo

İletişim

Detaylı ürün tanımı

Teknik:	Dokuma	Malzeme:	Paslanmaz Çelik Tel,316,304
Örgü stili:	Düz/Dimi Dokuma	Ürün adı:	Kare 4X4 Dokuma Un 100 Mikron Paslanmaz Çelik Hasır
Tel Çapı:	Gereklilik	Genişlik:	Genellikle 1M
E-posta:	devin@industrialmetalmesh.com	whatsapp:	+8615369013183
Vurgulamak:	stainless steel wire mesh filter , 400 mesh stainless steel screen , micron stainless steel mesh

2-400 Mesh Stainless Steel Wire Mesh Filter Screen/micro Screen Mesh Filter/ Micron Stainless Steel Mesh Screen(Factory)

we are expert manufacturer of woven wire mesh, especially stainless steel woven wire mesh and brass wire cloth products.
Stainless steel wire mesh square opening we supply comes from 2mesh to 635mesh per inch normally. Square woven stainless steel mesh is made with the pattern of Plain or Twill weave. We also produce good quality Dutch woven stainless steel wire cloth, which we are providing more information in a separate page.

Material applied for stainless steel wire mesh: Sus302, 304, 316, 304L, 316Lstainless steel wire.

Weaving Patterns applied for stainless steel wire mesh square opening:

Plain Weave:
Each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.

Twill Weave:

Each weft wire passes alternately over two, and then under two successive warp wires and each warp wire passes alternately over two and under two successive weft wires. It is possible to be used to allow a heavier than standard wire diameter.

Stainless Steel Wire Mesh

Stainless steel wire mesh is a kind of mesh made of stainless steel.

Material: Stainless steel wire 304,304L,316,316L and so on
Weaving: Plain weave, twill weave, dutch weave
Mesh: 2 mesh-500 mesh
Usage:
1. For acid, alkali conditions for screening and filtering, the petroleum industry as mud mesh, chemical fiber industry, as the sieve plating.
2. For mining, petroleum, chemical, food, medicine, machinery manufacturing, and other industries.
3. For acid, alkali conditions sieving and filtering, the mud for the oil industry, chemical fiber industry as screen, electroplating industry for pickling net, the factory can according to user needs to design the production of various types of products.

Product Features and Technical Specifications: Our woven wire mesh is crafted from premium 316L stainless steel, known for its exceptional resistance to corrosion, chemicals, and high temperatures. This ensures reliable filtration in demanding applications such as water treatment, oil and gas, and food processing. The customizable roll sizes allow for seamless integration into various systems, reducing waste and installation time. Key advantages include:

Enhanced Durability: 316L material provides superior strength and longevity, minimizing replacement costs.
Precise Filtration: Uniform weave structure ensures consistent particle retention for improved process efficiency.
Easy Customization: Tailor roll dimensions, wire diameter, and mesh size to fit specific industrial requirements.
Versatile Applications: Suitable for liquid, gas, and solid filtration across multiple sectors, including chemical plants and manufacturing facilities.

Specification

Mesh	Wire Diameter (mm)	Opening (mm)	Mesh	Wire Diameter (mm)	Opening (mm)
2×2	1.60	11.10	40×40	0.25	0.38
3×3	1.37	7.09	50×50	0.20	0.31
4×4	1.60	4.75	60×60	0.18	0.23
4×4	1.19	5.16	60×60	0.18	0.25
5×5	1.00	4.04	70×70	0.12	0.24
6×6	0.89	3.35	80×80	0.14	0.15
8×8	0.71	2.46	90×90	0.12	0.16
10×10	0.64	1.91	100×100	0.10	0.15
12×12	0.58	1.52	120×120	0.09	0.12
12×12	0.50	1.60	150×150	0.063	0.11
14×14	0.23	1.22	180×180	0.053	0.09
14×14	0.50	1.30	200×200	0.053	0.07
16×16	0.45	1.13	250×250	0.04	0.063
18×18	0.43	0.98	300×300	0.04	0.044
20×20	0.40	0.87	325×325	0.035	0.043
24×24	0.35	0.70	350×350	0.03	0.042
30×30	0.30	0.54	400×400	0.028	0.036
30×30	0.23	0.62	450×450	0.028	0.028
35×35	0.28	0.45	500×500	0.025	0.026

Plain weave and twill weave stainless steel wire mesh reference specification:

Mesh	Wire Diameter (mm)	Opening (mm)	Mesh	Wire Diameter (mm)	Opening (mm)
2×2	1.60	11.10	40×40	0.25	0.38
3×3	1.37	7.09	50×50	0.20	0.31
4×4	1.60	4.75	60×60	0.18	0.23
4×4	1.19	5.16	60×60	0.18	0.25
5×5	1.00	4.04	70×70	0.12	0.24
6×6	0.89	3.35	80×80	0.14	0.15
8×8	0.71	2.46	90×90	0.12	0.16
10×10	0.64	1.91	100×100	0.10	0.15
12×12	0.58	1.52	120×120	0.09	0.12
12×12	0.50	1.60	150×150	0.063	0.11
14×14	0.23	1.22	180×180	0.053	0.09
14×14	0.50	1.30	200×200	0.053	0.07
16×16	0.45	1.13	250×250	0.04	0.063
18×18	0.43	0.98	300×300	0.04	0.044
20×20	0.40	0.87	325×325	0.035	0.043
24×24	0.35	0.70	350×350	0.03	0.042
30×30	0.30	0.54	400×400	0.028	0.036
30×30	0.23	0.62	450×450	0.028	0.028
35×35	0.28	0.45	500×500	0.025	0.026

Duth weaving stainless steel wire mesh reference specification:

mesh	wire dia (MM)	Material (AISI)
12 X 64	0.58/0.40	304 316
24 X 110	0.36/0.25	30.316
14 X88	0.50/0.33	30.316
30 X150	0.18/0.14	30.316
40 X200	0.14/0.11	30.316
50 X250	0.10/0.071	30.316
80 X700	0.06/0.05	30.316
165 X800	0.071/0.040	30.316
165 X1400	0.05/0.032	30.316
200 X1800	0.05/0.03	30.316
325 X2300	0.030/0.025	316L
400 X2800	0.030/0.02	316L

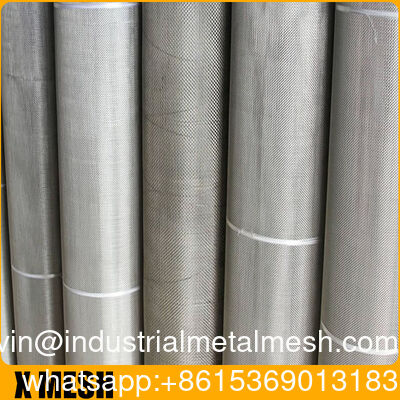

2-400 Mesh Stainless Steel Wire Mesh Filter Screen/micro Screen Mesh Filter/ Micron Stainless Steel Mesh Screen(Factory) 1

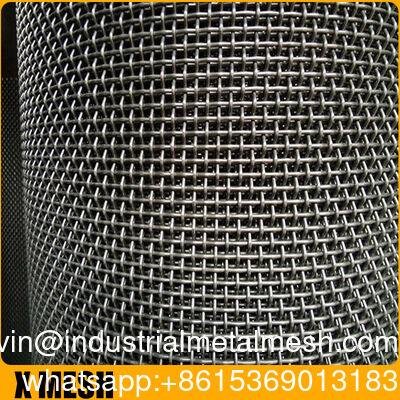

2-400 Mesh Stainless Steel Wire Mesh Filter Screen/micro Screen Mesh Filter/ Micron Stainless Steel Mesh Screen(Factory) 2
