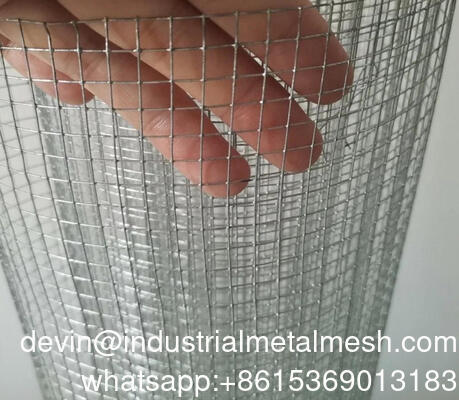

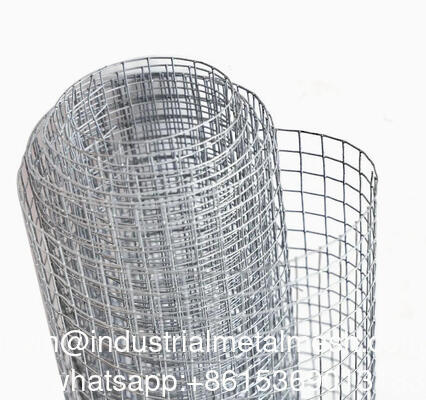

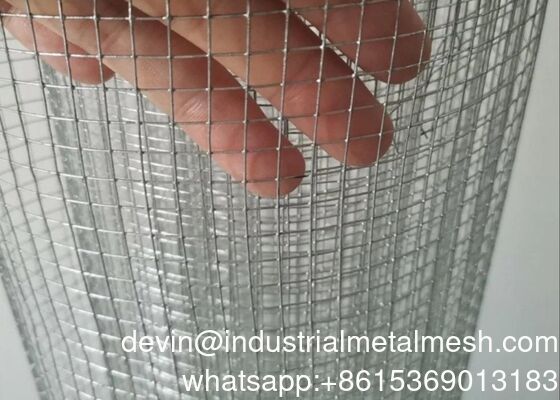

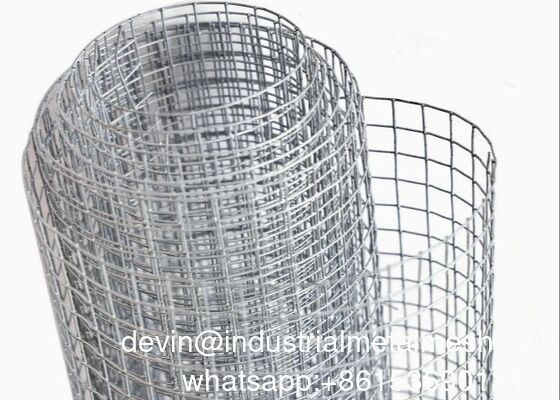

1/2", 1.4mm SUS304 Stainless Steels Welded Wire Mesh for Constructionist Chicken Duck Geese Rabbit Cage

Büyük resim : 1/2", 1.4mm SUS304 Stainless Steels Welded Wire Mesh for Constructionist Chicken Duck Geese Rabbit Cage

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	QIJIE
Sertifika:	SGS, ISO
Model numarası:	QJ-WMP-01

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1000 Metrekare
Fiyat:	USD 0.5-5/M2
Ambalaj bilgileri:	Paletler
Teslim süresi:	10-15 iş günü
Ödeme koşulları:	%30 TT
Yetenek temini:	Günde 1000 metrekare

İletişim

Detaylı ürün tanımı

Delik şekli:	Kare, dikdörtgen, uzun delik	Tel göstergesi:	0.5mm-14mm,2.0-4.0mm,BWG#12--#26,0.3-2.5mm,0.3mm-8.0mm
Başvuru:	İnşaat Hasır, Çit Örgüsü, bina, köprü, bahçe Çiti	Tip:	Kaynaklı Hasır, Elektrikli Hasır, Panel veya rulo
Diyafram:	1/2",1/4"-6",1" x 2" vb	Yüzey İşlem:	Sıcak Daldırma Galvanizli, pvc kaplı, galvanizli/pvc kaplı, toz boyalı
Genişlik:	0,5-2m,0,5-1,8m,300mm-2500mm,0,5m - 2,2m,1,2m	Uzunluk:	30m, 50m, 10m, 5m, 25m
Kullanım:	Koruma, bina, inşaat	paketleme:	palet, toplu
Ürün adı:	kaynaklı hasır, Galvanizli / PVC Kaplı Kaynaklı Hasır	Renk:	Gümüş, Yeşil, Gri, vb.
İsim:	Kaynaklı tel örgü, Taş Kafes Net, satılık pvc kaplı betonarme kaynaklı tel örgü	delik boyutu:	5/8'' müşteri isteğine göre
Tel Çapı:	1.0mm ~ 4.50mm	Örgü boyutu:	50x100mm
E-posta:	devin@industrialmetalmesh.com	whatsapp:	+8615369013183
Vurgulamak:	1/2 inch stainless steel welded wire mesh , 1.4mm SUS304 welded mesh for cages , stainless steel wire mesh for poultry

1/2", 1.4mm SUS304 Stainless Steels Welded Wire Mesh for Constructionist Chicken Duck Geese Rabbit Cage

Welded wire mesh panels material: black iron wire, galvanized before welding, galvanized after welding, hot-dipped galvanized welding, PVC coated, PE Coated, Powder coating. Welded wire mesh panels made from galvanized wire or black iron steel wire can also be PVC-coated or powder-coated to shield them from corrosion and rust.

Welded wire mesh panels can be used for a wide range of applications, usage as below: security cages, security fencing, metal fencing, dog fencing, animal enclosures, aviaries, bird cages, pet hutches, cat fences, pond covers or protection, garden fencing, and construction materials.

Welded wire mesh is high-quality low low-carbon steel wire welded row, and then cold plating (electroplating), hot galvanized, PVC-coated surface passivation, and plastics processing. To achieve a smooth surface, uniform mesh, strong joints, local good mechanical properties, stability, corrosion corrosion resistance.

Material:Low carbon steel wire, Stainless steel 302, 304, 304L, 316, 316L, Special materials, specifications can be customized according to customer requirements

Specification
Opening		Wire Diameter
Inch	metric Unit(mm)	Wire Diameter
1"x1"	25mmx25mm	2.5mm,2.0mm,1.8mm,1.6mm
2"x2"	50mmx50mm	2.5mm,2.0mm,1.8mm,1.6mm
2"x3"	50mmx70mm	6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm
2"x4"	50mmx100mm	6.0mm,5.0mm,4.0mm,3.0mm,2.0mm
2"x6"	50mmx150mm	6.0mm,5.0mm,4.0mm,3.0mm
2"x8"	50mmx200mm	6.0mm,5.0mm,4.0mm,3.0mm
3"x3"	75mmx75mm	6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm,1.6mm
3"x4"	75mmx100mm	6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm
4"x4"	100mmx100mm	6.0mm,5.0mm,4.0mm,3.0mm
5"x5"	125mmx125mm	6.0mm,5.0mm,4.0mm,3.0mm
6"x6"	150mmx150mm	6.0mm,5.0mm,4.0mm,3.0mm
Technical Note:
1.Standard Panel Length:0.5m-5.8m;Width:0.5m-2.4m 2.Special size available at request

Specification of Welded Wire Mesh
Opening		Wire Diameter	Width 0.4-2M Length 5-50m	electric galvanized before welded, electric galvanized after welded, hot-dipped galvanized before welded, hot-dipped galvanized after welded, PVC coated, Stainless steel wire
In inch	In metric unit	Wire Diameter
1/4" x 1/4"	6.4 x 6.4mm	BWG24-22
3/8" x 3/8"	10.6x 10.6mm	BWG22-19
1/2" x 1/2"	12.7 x 12.7mm	BWG23-16
5/8" x 5/8"	16x 16mm	BWG21-18
3/4" x 3/4"	19.1 x 19.1mm	BWG21-16
1" x 1/2"	25.4x 12.7mm	BWG21-16
1-1/2" x 1-1/2"	38 x 38mm	BWG19-14
1" x 2"	25.4 x 50.8mm	BWG16-14
2" x 2"	50.8 x 50.8mm	BWG15-12
2" x 4"	50.8 x 101.6mm	BWG15-12
4" x 4"	101.6 x 101.6mm	BWG15-12
4" x 6"	101.6 x 152.4mm	BWG15-12
6" x 6"	152.4 x 152.4mm	BWG15-12
6" x 8"	152.4 x 203.2mm	BWG14-12
Note: Special specifications can be made according to customers requires.

1. Welded wire mesh panel Material:

>low carbon steel wireQ195
>galvanized iron wire
>pvc coated iron wire
>stainless steel wire

2. Welded wire mesh panel type

> Galvanized Welded Mesh Panels
> Welded Stainless Steel Wire Mesh Panels
>Hot-dip Zinc Plating Welded Mesh Panels
>PVC coated Welded Mesh Panels
>Galvanized welded wire mesh rolls
>Pvc coated welded wire mesh rolls

3. Welded wire mesh panel Characteristics:

> High intensity anti-high temperature.
> Better strength and strong integration
> Flat & even surface and strong structure
> Anti-rust property
>Not easy to loosen even be cut into parts or exerted force on the parts

> A long service life and the service life can reach to several decades

4.Welded wire mesh panel Processing

a>Hot dipped galvanizing before welding
b>Hot dipped galvanizing after welding
c>Welding with iron wire
d>Electric galvanizing after welding
e>PVC coated welded wire mesh panel

Welded wire mesh
Material	Galvanized wire
surface	Surface passivation of cold plating (electroplating), hot plating, PVC, etc
wire diameter	0.5-14mm
Aperture	6-50mm
width	1-2 meters or customized
length	5-50 meters or customized
application	Industry, agriculture, breeding, construction, transportation, mining, etc.

Wire Diameter(mm)	Aperture (mm)		Width(m)	Length
Wire Diameter(mm)	Inch	MM	Width(m)	Length
2.0mm-3.2mm	1"	25.4	0.914m-1.83m	commonly under 6 m per piece if loaded in 20', commonly under 12 m per piece if loaded in 40',
2.0mm-4.5mm	2"	50.8	0.914m-2.75m
2.0mm-6.0mm	3"	70.2	0.914m-2.75m
2.0mm-6.0mm	4"	101.6	0.914m-2.75m
2.0mm-6.0mm	5"	127	0.914m-2.75m
2.0mm-6.0mm	6"	152.4	0.914m-2.75m
2.0mm-6.0mm	7"	177.8	0.914m-2.75m
2.0mm-6.0mm	8"	203.2	0.914m-2.75m

5. Welded wire mesh Packing:

>About welded wire mesh panel in wooden or steel pallet,50 to 500 piece per pallet.
>About welded wire mesh roll in water-proof paper.
(customer's packing is available on request.

Welded Wire Mesh Panel is made of superior quality welded mesh, with flat even surface, firm structure, be used extensively in building, food, agriculture and so on.
