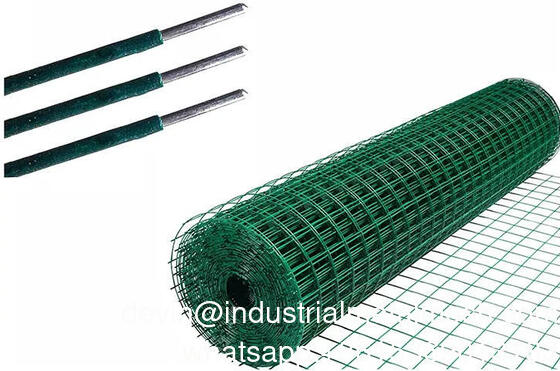

PVC-Coated Galvanized Welded Wire Mesh for Plant Protection
Product Description:
Galvanized Welded Wire Mesh is a high-performance metal mesh made by welding high-quality low-carbon steel wires into regular grids, then undergoing hot-dip or electro-galvanization. The galvanized layer provides strong corrosion resistance, while the welded structure ensures stability, making it suitable for long-term indoor and outdoor use.
Galvanized Welded Wire Mesh boasts outstanding durability and structural reliability. Its galvanized coating—especially the hot-dip galvanized layer—forms a dense protective barrier on the steel wire surface, effectively resisting corrosion from air, moisture, and weak corrosive media, allowing outdoor service life of 10-20 years.
Each wire intersection is firmly fixed by resistance welding, ensuring the mesh remains stable without loosening or deformation even under external pressure, and its automated production guarantees precise, uniform mesh sizes for consistent performance in various scenarios.
Applications:
Plaster mesh is widely used as a reinforcing material to protect the internal and external walls,floors and ceilings against cracking in the industrial plants and other architectures.Plaster Welded Wire Mesh has a wide scope. It can be used for the building inside and outside plaster reinforcement. As an essential piece of plastering work, it creates lasting plaster coating for absolutely all surfaces of concrete and brick to wood, and even plaster ceilings. Before plastering, the welded mesh must be mounted on wall by a solid dowel-nails or anchor bolts, which makes the plaster work easier. The Plaster Welded Wire Mesh makes the plaster wall surface smooth and no crack, also excludes the impact of external factors on the wall.
|
Opening
|
Wire Diameter
|
|
In inch
|
In metric unit
|
|
1/4" x 1/4"
|
6.4 x 6.4mm
|
BWG24-22
|
|
3/8" x 3/8"
|
10.6x 10.6mm
|
BWG22-19
|
|
1/2" x 1/2"
|
12.7 x 12.7mm
|
BWG23-16
|
|
5/8" x 5/8"
|
16.0x 16.0mm
|
BWG21-18
|
|
3/4" x 3/4"
|
19.1 x 19.1mm
|
BWG21-16
|
|
1" x 1/2"
|
25.4x 12.7mm
|
BWG21-16
|
|
1-1/2" x 1-1/2"
|
38.0 x 38.0mm
|
BWG19-14
|
|
1" x 2"
|
25.4 x 50.8mm
|
BWG16-14
|
|
2" x 2"
|
50.8 x 50.8mm
|
BWG15-12
|
|
2" x 4"
|
50.8 x 101.6mm
|
BWG15-12
|
|
4" x 4"
|
101.6 x 101.6mm
|
BWG15-12
|
|
4" x 6"
|
101.6 x 152.4mm
|
BWG15-12
|
|
6" x 6"
|
152.4 x 152.4mm
|
BWG15-12
|
|
6" x 8"
|
152.4 x 203.2mm
|
BWG14-12
|
|
Roll Width: 0.5m-2m; Roll Length: 5m, 10m, 30m, etc.
|
|
Material: galvanized, PVC coated, stainless steel.
|
|
Note: Special specifications can be made according to customers requires.
|
Widely used in industry, agriculture, construction, transportation, mining, and other industries. Such as machine protective hoods, beasts and animal fences, window fences, channel fences, poultry cages, paper baskets, and decorations.
|
|
|
Opening
|
Wire Diameter
|
Width 0.4-2m
Length 5-50m
|
electric galvanized before welded,
electric galvanized after welded,
hot-dipped galvanized before welded,
hot-dipped galvanized after welded,
PVC coated,
Stainless steel wire
|
|
Inch
|
Metric Unit
|
|
1/4"x1/4"
|
6.4mmx6.4mm
|
BWG24-22
|
|
3/8"x3/8"
|
10.6mmx10.6mm
|
BWG22-19
|
|
1/2"x1/2"
|
12.7mmx12.7mm
|
BWG23-16
|
|
5/8"x5/8"
|
16mmx16mm
|
BWG21-18
|
|
3/4"x3/4"
|
19.1mmx19.1mm
|
BWG21-16
|
|
1"x1/2"
|
25.4mmx25.4mm
|
BWG21-16
|
|
1-1/2"x1 1/2"
|
38mmx38mm
|
BWG19-14
|
|
1"x2"
|
25.4mmx12.7mm
|
BWG16-14
|
|
2"x2"
|
50.8mmx50.8mm
|
BWG15-12
|
|
2"x4"
|
101.6mmx101.6mm
|
BWG15-12
|
|
4"x4"
|
101.6mmx152.4mm
|
BWG15-12
|
|
4"x6"
|
101.6mmx152.4mm
|
BWG15-12
|
|
6"x6"
|
152.4mmx152.4mm
|
BWG15-12
|
|
6"x8"
|
15.4mmx203.2mm
|
BWG14-12
|
|
Note:Special specification can be made according to customers requires
|
SURFACE TREATMENT
1.Electrical zinc coating mesh
First welding,cutting the edge of the panel which can make sure the edges is smooth and not hurt your hands,clectrical zinc coating,packing
2.Pre Galvanized mesh
Use the hot dip gal. wire direct do the welding,cutting the edge of the panel which can make sure the edge is smooth and not hurt your hands,packing
3.Hot dip galvanized mesh
First welding,cutting the edge of the panel which can make sure the edges is smooth and not hurt your hands,clectrical zinc coating,packing

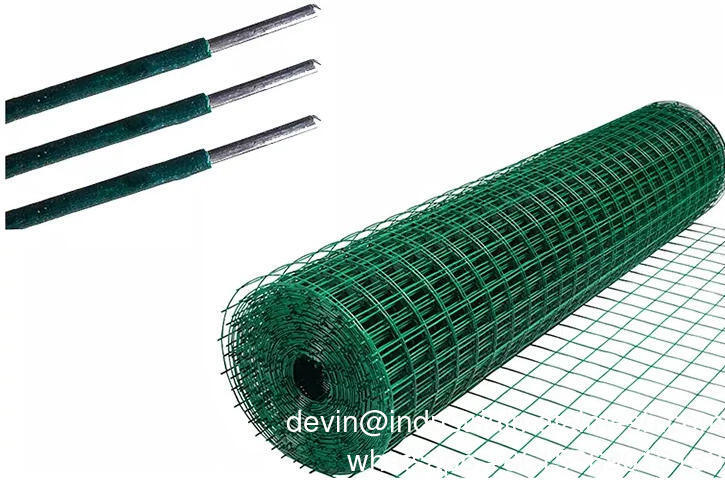

4.PVC coated welded wire mesh
Black wire + PVC coated
Galvanized wire+PVC coated
Feature of plastering welded wire mesh:
1. economic and good looking
2. anti-corrosion and long service life
3. wide scope of using
Welded Wire Mesh Welding style:
Hot dipped galvanized after or before welding
Electro galvanized after or before welding
Weaving and characteristics:
Hot dipped galvanizing after welding
Welding with hot dipped galvanized iron wire
Electric galvanizing after welding
Welding with electric galvanized iron wire
PVC coated welded wire mesh
Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
