Hot Dipped Gi / Pre-Galvanized Round Steel Pipe for Building Construction, ASTM Standard, in Stock

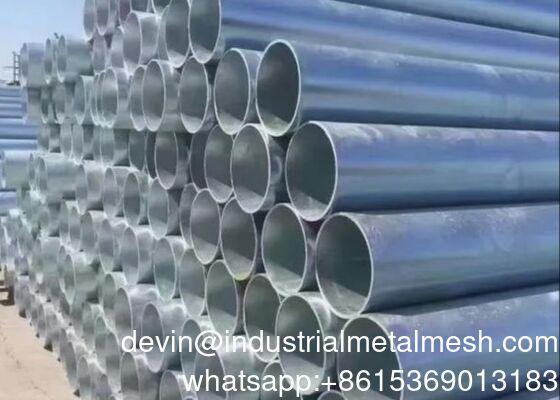

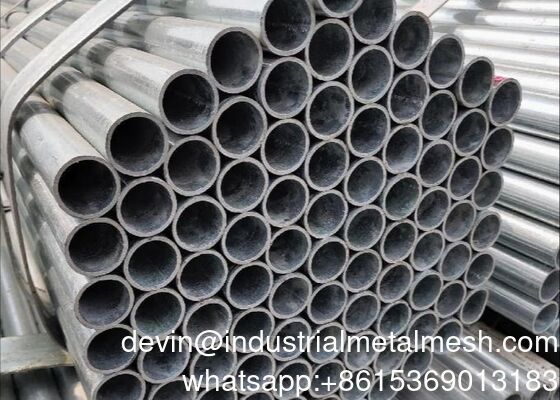

Büyük resim : Hot Dipped Gi / Pre-Galvanized Round Steel Pipe for Building Construction, ASTM Standard, in Stock

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	qijie
Sertifika:	steel pipe
Model numarası:	çelik boru

Ödeme & teslimat koşulları:

Min sipariş miktarı:	10 ton
Ambalaj bilgileri:	toplu
Teslim süresi:	15-18gün
Ödeme koşulları:	L/C, D/P, T/T, Western Union
Yetenek temini:	100 ton

İletişim

Detaylı ürün tanımı

Malzeme:

Çelik

Yüzey İşlem:

sıcak daldırma galvanizli

Standart:

GB/T3091 - 2001 ,BS1387 - 1985 , DIN EN10025 ,EN10219 , JIS G3444:2004 , ASTM A53

Çelik Sınıfı:

GB/T3091 - 2001:Q195 , Q235 BS1387 - 1985 , DIN EN10025 EN10219 :S235JR JIS G3444:2004:STK400 ASTM A

Vurgulamak:

Hot dipped GI steel pipe for construction

Pre-galvanized round steel pipe ASTM

Round steel pipe for building construction

Hot Dipped Gi / Pre-Galvanized Round Steel Pipe for Building Construction, ASTM Standard, in Stock

Precision Dimensions for Easy Integration.

Galvanized steel pipe is a welded steel pipe with a hot-dip galvanized or electro-galvanized layer on the surface. Galvanizing can increase the corrosion resistance of steel pipes and prolong the service life. Galvanized pipes are widely used. In addition to being used as pipeline pipes for general low-pressure fluids such as water, gas, and oil, they are also used as oil well pipes and oil pipes in the petroleum industry, especially in offshore oil fields, and oil heaters and condensers in chemical coking equipment. Pipes for coolers, coal distillation washing oil exchangers, and pipes for trestle piles, supporting frames for mine tunnels, etc.

Shape	Square:2020-200200mm
Shape	Rectangular :3020-250150mm
Thickness	0.12-4 mm, or as request
Length	3-12m,or as per your request
Technique	Hot Rolled, Cold Rolled,ERW,High-frequency welded,Extruded
Surface	Bared, Oil, Galvanized, Paint,etc
Standard	GB/T3094-2000,GB/T6728-2002,ASTM A500,JIS G3466,DIN EN10210,or others
Material	Q195,Q235,Q275,Q345,S355,St33,St37,St52A500,A513,A106 and so on
Certification	ISO9001:2000,CE,SGS
Package	Wooden box,steel strip,pallet,or as your request
Productivity	15000tons/month
Usage	Machinery manufacture,Roads and Bridges,Construction,Transportation

1. Size:	1) OD: 16~600mm 2) Wall Thickness: 0.5~25mm 3) SCH20,SCH40,STD,XS,SCH80,SCH160,XXS
2. Steel material:	Q195 Q215 Q235
3. Standard:	ASTM A53, BS1387-1985
4. Zinc Coating:	30~275gsm
5. Usage:	1)low pressure liquid, water, gas, oil, line pipe 2)construction 3)fence, door pipe
6. Ends:	1) Plain 2) Beveled 3) Thread with Coupling or cap 4) Chamfer 5) Groove 6) Screw
7. End protector:	1) Plastic pipe cap 2) Iron protector
8. Surface Treatment:	1) Bared 2) Black Painted (varnish coating) 3) Galvanized 4) Oiled 5) PE,3PE, FBE, corrosion resistant coating, Anti corrosion coating.
9. Technique:	1) Electronic Resistance Welded (ERW ) 2) Electronic Fusion Welded (EFW) 3) Double Submerged Arc Welded (DSAW)
10. Welded Line Type:	Longitudinal
11. Section Shape:	Round, Square, Rectangular.
12. Inspection:	With Hydraulic Testing, Eddy Current , Infrared Test
13. Delivery:	Container, Bulk Vessel.
14. Minimum Order Quality:	5MT

1.Black square&rectanhgular steel pipe:ERW steel tube
2.Pre-galvanized square&rectangular steel pipe: Pre-galvanized square/rectangular tube is made of hot dipped galvanized steel strip directly.
3.Hot dipped galvanizedsquare&rectangular steel pipe : Hot dipped galvanized square/rectangular tube owns thicker zinc coating than pre-galvanized square/rectangular tube. Black tubes will be dipped into zinc pool for galvanizing.
4.Electro galvanized square&rectangular steel pipe : The technology of electro galvanized square/rectangular tube is similar to hot dipped galvanized tube, but the thickness of zinc coating is less than hot dipped galvanized tube.
5.Painted square&rectangular steel pipe:Painted square/rectangular to remove the rust and clean the oil first and then paint the required color paint.
Standard:GB/T6728:2002,ASTMA500,JIS G3466,EN10210,EN10219
Steel Grade:
GB/T6728:2002 : Q195 , Q235 , Q345
ASTM A500:GR. A , GR. B, GR. C , GR. D
JIS G3466 : SS440,SS540
EN10210, EN10219: S235JR ,S275JR,S355JR, S355J2H

Square & rectangular steel tube : The size can be based on your requirement to custom.

Name	Size	Wall Thickness	Length
Name	mm	mm	m
Square tube	10x10-500x500	0.6-25.0	1-12m
Rectangular tube	20x10-200x400	0.7-13.0	1-12m

TECHNICAL PARAMETERS
Product Name	Galvanized Steel Round Pipe
Keywords	Steel Pipe
Standard	BS1139-1775, EN1039, EN10219, JIS G3444:2004, GB/T3091-2001, BS1387-1985, DIN EN10025, ASTM A53 SCH40/80/STD, BS-EN10255-2004
Material	Q235, Q345, S235JR, S275JR, STK400, STK500, S355JR, GR.B-D
Thickness	Pre Galvanized:0.6-1.5mm.
Thickness	Hot Dipped Galvanized: 1.6- 25mm.
Length	5.80 Meters Or 6 Meters As Usual Or By Customer'S Requirements
Out Diameter	Pre Galvanized:1/2''-4''(21.3-114.3mm).
Out Diameter	Hot Dipped Galvanized:1/2''-10''(21.3Mm-273.1mm).
Zinc Coating	Pre Galvanized:5GSM-40GSM
Zinc Coating	Hot Dipped Galvanized 35GSM-200GSM
Technique	Electronic Resistance Welded (ERW)
Surface Finish	Pre-Galvanized, Hot Dipped Galvanized, Electro Galvanized, Black, Painted, Threaded, Engraved, Socket.
Application	Hot Dipped Galvanized Steel Pipe Is Widely Used In Construction, Structure, Accessorize,Construction, Machinery Parts,Fluid Transportation,The Stress Parts Of The AutomobileTractor Parts And So On.
Packing	1.Big OD:In Bulk
	2.Small OD:Packed By Steel Strips
	3.Woven Cloth With 7Slats
	4.According To The Requirements Of Customers

SIZE INTRODUCTION
Out Diameter	Wall Thickness	Length
Inch	Mm	M
1/2"	0.5-2.75	1-12M (Customized)
3/4"	0.5-2.75	1-12M (Customized)
1"	0.5-3.75	1-12M (Customized)
1-1/4"	0.5-5.0	1-12M (Customized)
1-1/2"	0.5-5.0+	1-12M (Customized)
2"	0.5-5.0+	1-12M (Customized)
2-1/2"	0.8-5.0+	1-12M (Customized)
3"	0.8-5.0+	1-12M (Customized)
4"	0.8-4.0	1-12M (Customized)
5"	1.1-4.75	1-12M (Customized)
6"	1.1-6.0+	1-12M (Customized)
8"	1.2-6.5+	1-12M (Customized)
10"	2.75-5.0+	1-12M (Customized)
