Boundaries Wall Welded Razor Barbed Wire Mesh Prison Fence Netting

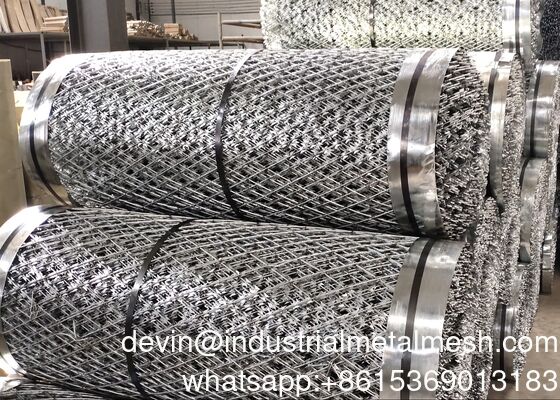

Büyük resim : Boundaries Wall Welded Razor Barbed Wire Mesh Prison Fence Netting

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	Qijie
Sertifika:	ISO9001
Model numarası:	QJ-R001

Ödeme & teslimat koşulları:

Min sipariş miktarı:	100 rulo
Fiyat:	discuss
Ambalaj bilgileri:	Dışarıdaki dokuma çantası, karton kutu vb.
Teslim süresi:	15-20 gün
Ödeme koşulları:	%30 TT peşin, Yüklemeden önce Bakiye
Yetenek temini:	Haftada 100 Ton

İletişim

Detaylı ürün tanımı

Malzeme:	galvanizli çelik tel	Başvuru:	Güvenlik çiti
Tip:	Genişletilmiş Örgü	Renk:	Gümüş
Kullanım:	Yapı	Özellik:	Korozyon Direnci,Dayanıklı,Kolay Montaj
Yüzey İşlem:	Sıcak Daldırma Galvanizli	Boyut:	senin gereksiniminiz gibi
E-posta:	devin@industrialmetalmesh.com	Whatsapp:	+8615369013183
Vurgulamak:	welded razor barbed wire fence , prison razor wire netting , concertina razor wire mesh

Welded Razor Mesh Panels with 55 X 200 mm Diamond Distancece

Welded razor mesh (or Welded razor fence or Diamond razor mesh) is a straight razor barbed wire , welded mesh processed, which can be welded into a diamond, rectangular hole (aperture can be produced according to customers' requirements), nice, and the card cannot climb down, blocking strong deterrent force strong. It can be integrated with other fence and can also be used alone.
Welded razor wire mesh is a multi-functional, high security mesh fencing made of straight-blade netting welded together, packaging into a roll or panels form for transport.
This welded razor wire mesh security fence product is almost impossible to climb or cut off with the standard tools, also it has a neat appearance. Welded razor wire mesh is installed in various parts of the world's airports, border bases, water substation, the border fence, oil depots, factories and so on.

Type	Razor Mesh(Diamond Hole)	Razor Mesh(Square Hole)
Thickness of Sheet	0.5mm±0.05mm
Wire Diameter	2.5mm±0.1mm
Height	1.0m-2.4m
Length	2.0m-10.0m
Mesh Size	75mmx150mm 100mmx200mm 150mmx300mm	150mmx150mm 200mmx200mm 300mmx300mm

Application:
Rhombus Welded Razor Mesh Fence is the ideal solution for any facility perimeter where an

aggressive visual deterrent and physical barrier is required.
Rhombus Welded Razor Mesh Fence Specifications:
Standard Heights: 6', 7 ½' and 10' (1.8m, 2.3 m and 3m)
Aperture Size: 3"*6" high density (7.62cm*15.24cm, Standard density also available)
Standard Panel Length: 20'6" (6.25m)
Blade length: 0.98" (2.5cm)
Blade thickness: 0.02" (0.5mm)
Blade width: 0.74" (19mm)
Blade spacing: 1.97" (5cm)

Welded Razor mesh fence
Name	Core Wire	Sheet	Razor Style	Mesh Aperture	Finished	Size	Package
Welded Razor Mesh	2.5±0.05mm	0.5±0.03 mm	BTO-22 BTO-28 BTO-30	75X150mm 150X300mm as standard	HDG or PC coated	1.2x6.0m 1.8x6.0m 2.1x6.0m 2.4x6.0m	In roll or pallet

Name	Welded Razor Mesh Specification
Welded Razor Mesh	Core Wire	Razor Strip (sheet)	Square Razor Mesh Size	Diamond Razor Mesh Size
Welded Razor Mesh	2.50±0.05 mm High Tensile Galvanised Wire Or stainless steel wire AISI304, AISI430, AISI316, AISI304L, AISI316L	0.50±0.05 mm Galvanised sheet strip razor Or stainless steel sheet trip AISI304, AISI430, AISI316, AISI304L, AISI316L	50 × 150 mm 75 × 150 mm 100x150 mm	75 × 150 mm 150 × 300 mm
Other Mesh Sizes According to Customers' requirement

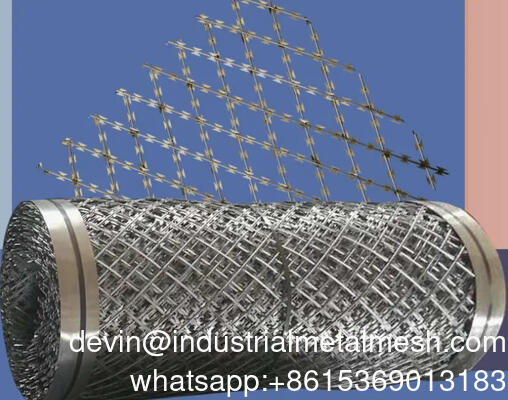

Boundaries Wall Welded Razor Barbed Wire Mesh Prison Fence Netting 1

Galvanized anti-corrosion
Quick and easy for installation
Prevent sunlight, resistance against weathering drying
The appearance of the dreaded and excellent protective performance.
Sharp razor and it is almost impossible to climb.
Solid welded, high-strength steel core very difficult to cut off.
Powerful security fence barriers neat appearance.
No secondary use, so he will not be stolen.
Various type can be chosen, square mesh, diamond mesh, etc
Various materials can be chosen, galvanized, stainless steel, with various colors.

Boundaries Wall Welded Razor Barbed Wire Mesh Prison Fence Netting 2

Application:

Boundaries Wall Welded Razor Barbed Wire Mesh Prison Fence Netting 3

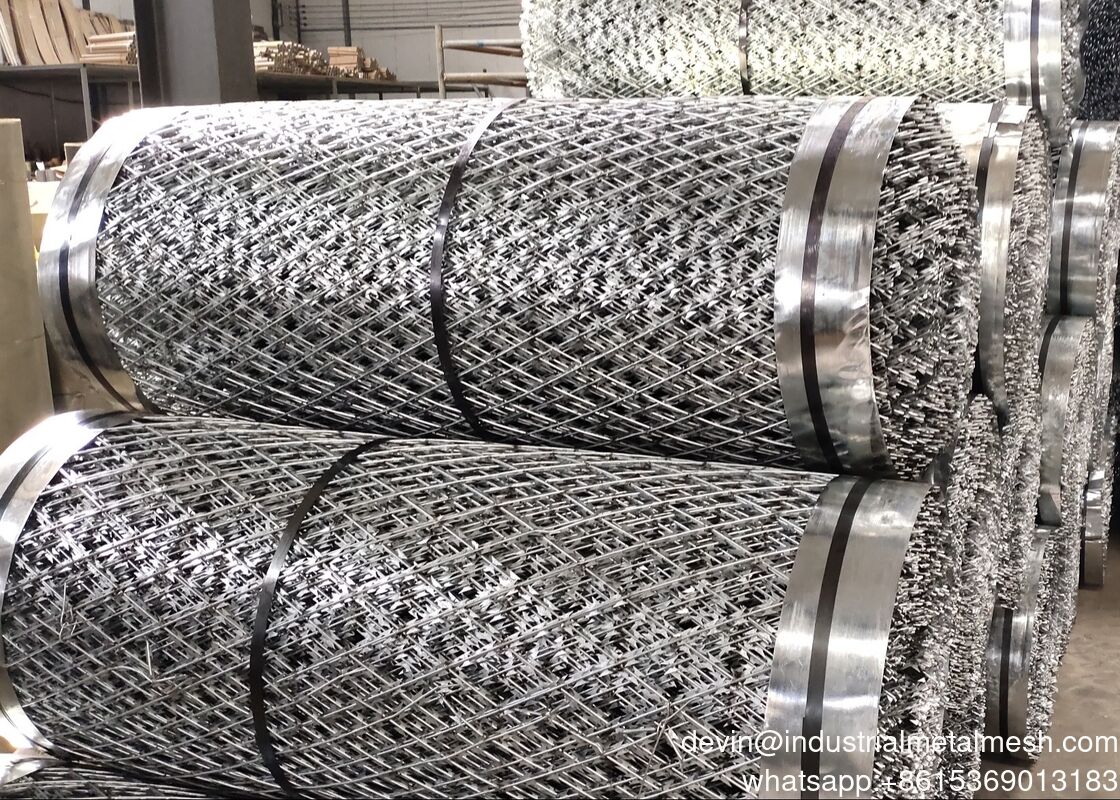

Packing:

1. Packing will be different based on the client's request.
2. Normally, welded razor mesh is packed with waterproof paper inside and woven bag outside.
3. About 15 rolls per small bundle, and put on the wood pallet or in the carton box

Boundaries Wall Welded Razor Barbed Wire Mesh Prison Fence Netting 4

Boundaries Wall Welded Razor Barbed Wire Mesh Prison Fence Netting 5

Boundaries Wall Welded Razor Barbed Wire Mesh Prison Fence Netting 6

Boundaries Wall Welded Razor Barbed Wire Mesh Prison Fence Netting 7
