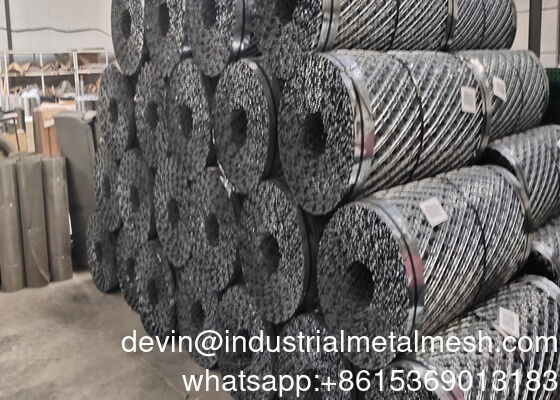

Welded Razor Mesh Panels with 55 X 200 mm Diamond Distancece

Büyük resim : Welded Razor Mesh Panels with 55 X 200 mm Diamond Distancece

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	Qijie
Sertifika:	ISO9001
Model numarası:	QJ-R001

Ödeme & teslimat koşulları:

Min sipariş miktarı:	100 rulo
Fiyat:	discuss
Ambalaj bilgileri:	Dışarıdaki dokuma çantası, karton kutu vb.
Teslim süresi:	15-20 gün
Ödeme koşulları:	%30 TT peşin, Yüklemeden önce Bakiye
Yetenek temini:	Haftada 100 Ton

İletişim

Detaylı ürün tanımı

Malzeme:	galvanizli çelik tel	Başvuru:	Güvenlik çiti
Tip:	Genişletilmiş Örgü	Renk:	Gümüş
Kullanım:	Yapı	Özellik:	Korozyon Direnci,Dayanıklı,Kolay Montaj
Yüzey İşlem:	Sıcak Daldırma Galvanizli	Boyut:	senin gereksiniminiz gibi
E-posta:	devin@industrialmetalmesh.com	Whatsapp:	+8615369013183
Vurgulamak:	welded razor mesh panels , razor mesh panels 55x200mm , concertina razor wire panels

Welded Razor Mesh Panels with 55 X 200 mm Diamond Distancece

pvc coated galvanized wire is the most popular powder for coating wires, as it is relatively low in cost, resilient, fire retardant and possesses good insulating properties. The PVC coating and the inside wire are firmly bonded together to offer a longer service life. High-density hard PVC (vinyl chloride) coating is applied against the corrosion of common acids and alkalis. The service life is up to 12 years, that is several times that of hot and cold galvanized iron wire. The colors can be customized according to customers needs.

The coating materials of PVC, PE, polyvinyl chloride, can be added with anti-UV, anti-aging additives to achieve enhanced properties.

The wire gauge number, tensile strength, elongation, the amount of zinc and other parameters shall be pre-determined before the plastic coating processing. Average tensile strength for the PVC coated wire ranges from 350N/MM2-900N/MM2, elongation ranges from 8% -15%.

Type	Razor Mesh(Diamond Hole)	Razor Mesh(Square Hole)
Thickness of Sheet	0.5mm±0.05mm
Wire Diameter	2.5mm±0.1mm
Height	1.0m-2.4m
Length	2.0m-10.0m
Mesh Size	75mmx150mm 100mmx200mm 150mmx300mm	150mmx150mm 200mmx200mm 300mmx300mm

Application:
Rhombus Welded Razor Mesh Fence is the ideal solution for any facility perimeter where an

aggressive visual deterrent and physical barrier is required.
Rhombus Welded Razor Mesh Fence Specifications:
Standard Heights: 6', 7 ½' and 10' (1.8m, 2.3 m and 3m)
Aperture Size: 3"*6" high density (7.62cm*15.24cm, Standard density also available)
Standard Panel Length: 20'6" (6.25m)
Blade length: 0.98" (2.5cm)
Blade thickness: 0.02" (0.5mm)
Blade width: 0.74" (19mm)
Blade spacing: 1.97" (5cm)

Welded Razor mesh fence
Name	Core Wire	Sheet	Razor Style	Mesh Aperture	Finished	Size	Package
Welded Razor Mesh	2.5±0.05mm	0.5±0.03 mm	BTO-22 BTO-28 BTO-30	75X150mm 150X300mm as standard	HDG or PC coated	1.2x6.0m 1.8x6.0m 2.1x6.0m 2.4x6.0m	In roll or pallet

Name	Welded Razor Mesh Specification
Welded Razor Mesh	Core Wire	Razor Strip (sheet)	Square Razor Mesh Size	Diamond Razor Mesh Size
Welded Razor Mesh	2.50±0.05 mm High Tensile Galvanised Wire Or stainless steel wire AISI304, AISI430, AISI316, AISI304L, AISI316L	0.50±0.05 mm Galvanised sheet strip razor Or stainless steel sheet trip AISI304, AISI430, AISI316, AISI304L, AISI316L	50 × 150 mm 75 × 150 mm 100x150 mm	75 × 150 mm 150 × 300 mm
Other Mesh Sizes According to Customers' requirement

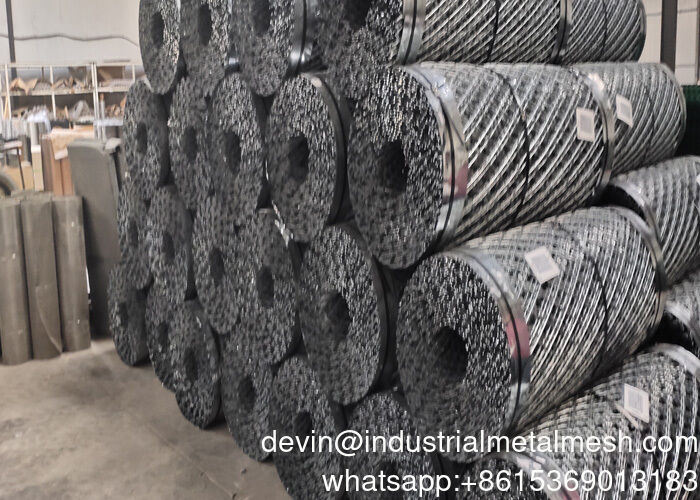

Welded Razor Mesh Panels with 55 X 200 mm Diamond Distancece 1

Galvanized anti-corrosion
Quick and easy for installation
Prevent sunlight, resistance against weathering drying
The appearance of the dreaded and excellent protective performance.
Sharp razor and it is almost impossible to climb.
Solid welded, high-strength steel core very difficult to cut off.
Powerful security fence barriers neat appearance.
No secondary use, so he will not be stolen.
Various type can be chosen, square mesh, diamond mesh, etc
Various materials can be chosen, galvanized, stainless steel, with various colors.

Welded Razor Mesh Panels with 55 X 200 mm Diamond Distancece 2

Application:

Welded Razor Mesh Panels with 55 X 200 mm Diamond Distancece 3

Packing:

1. Packing will be different based on the client's request.
2. Normally, welded razor mesh is packed with waterproof paper inside and woven bag outside.
3. About 15 rolls per small bundle, and put on the wood pallet or in the carton box

Welded Razor Mesh Panels with 55 X 200 mm Diamond Distancece 4

Welded Razor Mesh Panels with 55 X 200 mm Diamond Distancece 5

Welded Razor Mesh Panels with 55 X 200 mm Diamond Distancece 6

Welded Razor Mesh Panels with 55 X 200 mm Diamond Distancece 7
