Flexible 304 316 Stainless Steel Cable Ferrule Woven Wire Rope Mesh for Bridge

Büyük resim : Flexible 304 316 Stainless Steel Cable Ferrule Woven Wire Rope Mesh for Bridge

Ürün ayrıntıları:

Menşe yeri:	Hebei, Çin
Marka adı:	QIJIE
Sertifika:	CE,SGS,ISO
Model numarası:	SW-004

Ödeme & teslimat koşulları:

Min sipariş miktarı:	10 metrekare
Ambalaj bilgileri:	tahta sandık
Teslim süresi:	10-15 iş günü
Ödeme koşulları:	%30 TT peşin, Yüklemeden önce Bakiye
Yetenek temini:	3000 m2/ay

İletişim

Detaylı ürün tanımı

Malzeme:	paslanmaz çelik tel	Tip:	Halat Mesh, Yüksük Tipi veya Düğümlü Tip
Başvuru:	Ağı Koruma	Örgü stili:	Düz örgü
Teknik:	Dokuma	Model numarası:	Çelik Halat Hasır
İşleme Hizmeti:	Örgü	Hammadde:	Paslanmaz Çelik 304 316, Galvanizli Tel
Aksesuarlar:	Hepsi sağlanabilir	E-posta:	devin@industrialmetalmesh.com
Whatsapp:	+8615369013183
Vurgulamak:	Flexible stainless steel cable ferrule , 304 316 wire rope mesh , Stainless steel bridge mesh

Flexible 304 316 Stainless Steel Cable Ferrule Woven Wire Rope Mesh for Bridge

Wire rope mesh (also called cable mesh) is made from robust stainless steel cables(material: AISI304 316). These are linked together by a special method using tin-plated copper (type CX) or stainless steel (types CXE and CXS)ferrules to form a stressable yet flexible structure for two- or three-dimensional applications. It keeps its shape indefinitely and requires very little care or maintenance.

The stainless steel wire rope mesh is composed od 304,304L,316,316L, etc. It is suitable for many fields such as zoos, wild animal parks, ocean parks, sports, acrobatics, home decoration, architectural decoration, and so on.

Material	stainless steel 304 304L 316 316L etc.
Mesh Size	1x30m 2x30m 4x30m or according to clients' requirements
Hole shape	Diamond hole
Wire diameter	1mm~5mm or customized
Opening size	2" x 2", 3" x 3" and 4" x 4".or customized
structure	77 or 719
surface	Flat and Bright
Feaure	Hand knitting, lightweight, high-strength, rustles, eco-friendly, safety, long service life, Corrosion resistant, easy assembly

Advantage:
1.High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
2.Anti-corrosive, resist the rust, can be repeated use.
3.Resists chewing by rodents and other pests
4.This product can bear the heavy snow and the gale very much.
5.Without toxic material, safety, environmental protection.

The type of stainless steel rope mesh
1. Knotted mesh is a kind of plain weave,each warp wire rope crosses alternately above and below each weft wire rope.Warp and weft wire ropes generally have the same diameter.

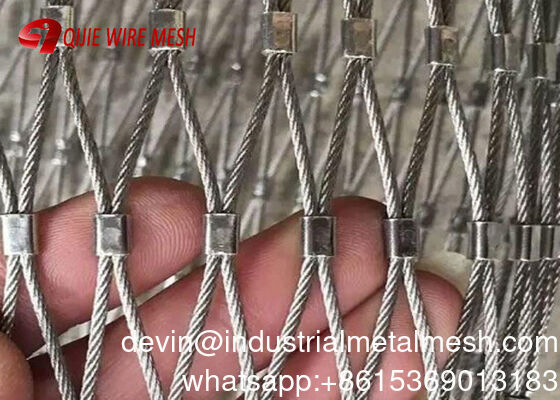

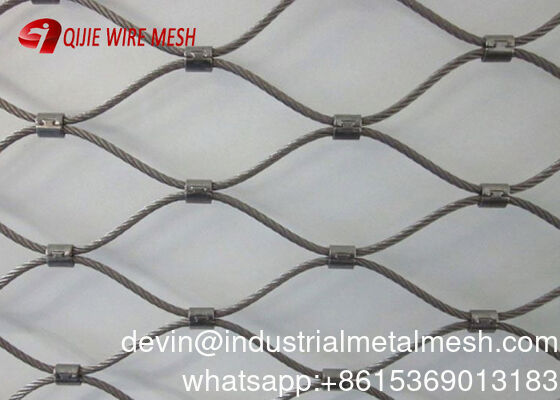

2.Ferruled mesh is of the same physical properties with the knotted mesh,the only difference is in the combination style,the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.

Flexible 304 316 Stainless Steel Cable Ferrule Woven Wire Rope Mesh for Bridge 0

Flexible 304 316 Stainless Steel Cable Ferrule Woven Wire Rope Mesh for Bridge 1

Feature:

Stainless steel provides the highest corrosion resistance.
Elegant and robust.
Light, robust yet transparent.
UV and weather resistant.
Flexible and pliable.
Climb resistant and prevents a secure foothold.
The minimum visual impact on views.
Recyclable.
Good price-benefit-ratio.
Easy installation and low maintenance.
Weave opening, meet any exact specification.

The type of stainless steel rope mesh:

There are two types of flexible wire rope meshes in construction: ferrule type and knotted.

Flexible 304 316 Stainless Steel Cable Ferrule Woven Wire Rope Mesh for Bridge 4

Flexible 304 316 Stainless Steel Cable Ferrule Woven Wire Rope Mesh for Bridge 5

Applications:
1. Green Facade - Cable System for Most Climbing Plants

2. Aviary Netting - Lightweight, Durable and Long Lasting

3. Cable Zoo Mesh - Solution to Enclosing Most Animals

4. Helipad Safety Net - Modular Heliport Webbing

5. Safety Net - Structural Measure to Prevent Suicide

6. Cable Mesh - Excellent Solution to Safety

7. Steel Mesh Balustrade - bridge, stair, balcony, path

Flexible 304 316 Stainless Steel Cable Ferrule Woven Wire Rope Mesh for Bridge 6
