Flexible 304/316 Hand Woven Stainless Steel Knotted Wire Rope Cable Mesh for Zoo Security

Büyük resim : Flexible 304/316 Hand Woven Stainless Steel Knotted Wire Rope Cable Mesh for Zoo Security

Ürün ayrıntıları:

Menşe yeri:	Hebei, Çin
Marka adı:	QIJIE
Sertifika:	CE,SGS,ISO
Model numarası:	SW-004

Ödeme & teslimat koşulları:

Min sipariş miktarı:	10 metrekare
Ambalaj bilgileri:	tahta sandık
Teslim süresi:	10-15 iş günü
Ödeme koşulları:	%30 TT peşin, Yüklemeden önce Bakiye
Yetenek temini:	3000 m2/ay

İletişim

Detaylı ürün tanımı

Malzeme:	Paslanmaz Çelik Tel	Tip:	Halat Mesh, Yüksük Tipi veya Düğümlü Tip
Uygulama:	Ağı Koruma	Örgü stili:	Düz örgü
Teknik:	Dokuma	Model numarası:	Çelik Halat Hasır
İşleme Hizmeti:	Örgü	Hammadde:	Paslanmaz Çelik 304 316, Galvanizli Tel
Aksesuarlar:	Hepsi sağlanabilir	E-posta:	devin@industrialmetalmesh.com
whatsapp:	+8615369013183
Vurgulamak:	flexible stainless steel wire rope mesh , hand woven zoo security cable mesh , 304/316 stainless steel knotted wire mesh

Flexible 304/316 Hand Woven Stainless Steel Knotted Wire Rope Cable Mesh for Zoo Security

Stainless Steel Rope Mesh

The material of stainless steel rope net is 304, 304L, 316, 316L and its structure is 7*7 or 7*19. The process is divided into hand-woven, closed buckle type and open buckle type.

Characteristics of stainless steel rope net:

Light weight, high strength, not easy to corrode.

Good softness, fatigue resistance, impact resistance, large breaking force, strong and durable overall structure.

Service life is more than 30 years, green and environmentally friendly, good perspective, luxurious appearance, novel style.

Uses of stainless steel rope mesh:
Zoos, safari parks, marine parks and other similar environments.
Animal cages, bird nets, animal fences and garden decoration and construction and renovation.
In addition, stainless steel rope mesh is also suitable for sports, acrobatics, home decoration, architectural decoration and many other fields.

Specification

Product Name	Stainless Steel Wire Rope Mesh
Material	Stainless Steel 304, 304L, 316, 316L, etc
Wire Diameter	1-4MM
Mesh Size	20-300 MM
Structure	77 or 719
Weaving Types	Hand-woven, Open buckle type, Closed buckle type.
Application	Used in bridge fences, zoos, safari parks, ocean parks, sports, acrobatics, home decoration, architectural decoration and many other fields.
Packing	Carton or wooden box

Flexible 304/316 Hand Woven Stainless Steel Knotted Wire Rope Cable Mesh for Zoo Security 0

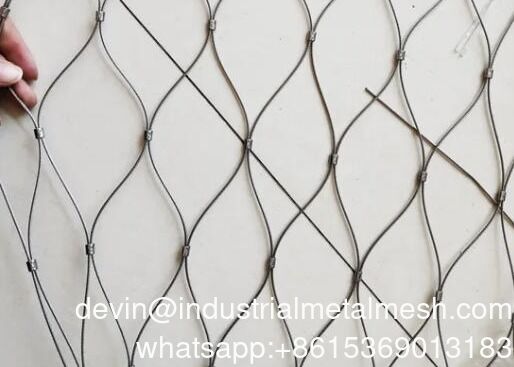

1.Flexible stainless steel cable mesh (Inter-woven type)

Our Flexible stainless steel cable mesh products are supplied in two main series: Inter-woven and Ferrule Type. Inter-woven mesh are hand-woven which was also called hand-woven mesh is made from fine s.s.wire rope . The rope construction is 7 x 7 or 7 x 19 and made from AISI 304 or AISI 316 material group.This mesh has strong tensile strength , high flexibility,high transparence and wide span.The flexible s.s. cable mesh has unreplacable advantages compared with other mesh products in many aspects like practicability, security, aesthetic property and durability etc. Its more and more appreciated by garden designers and architect all over the world.

The specification of stainless steel knotted rope mesh

Code	Rope Construction	Rope Diameter		Opening Size		Breaking Force
Code	Rope Construction	Inch	mm	Inch	mm	KN
BR-01	7 × 19	1/8	3.2	4.7" × 4.7"	120 × 120	7.38
BR-02	7 × 19	1/8	3.2	4" × 4"	102 × 102	7.38
BR-03	7 × 19	1/8	3.2	3.6" × 3.6"	90 × 90	7.38
BR-04	7 × 19	1/8	3.2	3" × 3"	76 × 76	7.38
BR-05	7 × 19	1/8	3.2	2" × 2"	51 × 51	7.38
BR-06	7 × 7	3/32	2.4	4" × 4"	102 × 102	4.18
BR-07	7 × 7	3/32	2.4	3.6" × 3.6"	90 × 90	4.18
BR-08	7 × 7	3/32	2.4	3" × 3"	76 × 76	4.18
BR-09	7 × 7	3/32	2.4	2.4" × 2.4"	60 × 60	4.18
BR-10	7 × 7	3/32	2.4	2" × 2"	51 × 51	4.18
BR-11	7 × 7	5/64	2	3" × 3"	76 × 76	3.17
BR-12	7 × 7	5/64	2	2.4" × 2.4"	60 × 60	3.17
BR-13	7 × 7	5/64	2	2" × 2"	51 × 51	3.17
BR-14	7 × 7	5/64	2	1.5" × 1.5"	38 × 38	3.17
BR-15	7 × 7	1/16	1.6	3" × 3"	76 × 76	2.17
BR-16	7 × 7	1/16	1.6	2" × 2"	51 × 51	2.17
BR-17	7 × 7	1/16	1.6	1.5" × 1.5"	38 × 38	2.17
BR-18	7 × 7	1/16	1.6	1.2" × 1.2"	30 × 30	2.17

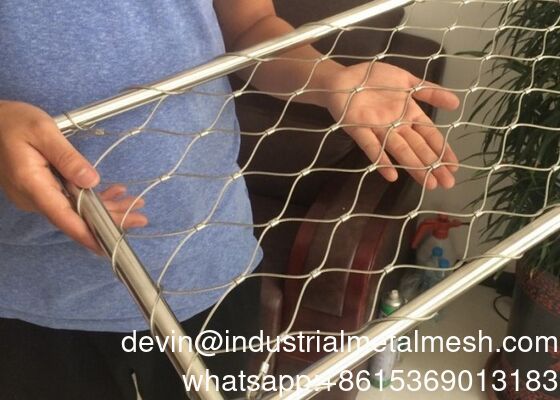

2.Flexible stainless steel cable mesh (Ferrule type)

Our flexible stainless steel cable mesh are supplied in two main series : Inter-woven and Ferrule. Our mesh is made from s.s.wire rope in various material type like SUS304,SUS304L,SUS316,SUS316L etc and two main strand structures:7*7 and 7*19.cable dia.1mm-4mm and mesh size:20mm-160mm. The ferrule type series are sub-divided into aluminum alloy mesh ,stainless steel ,tinned copper and nickled copper mesh by the material of the ferrule. The ferrule type mesh, are more used in fields like balustrades on bridges and staircases, large barrier fences, and building facade trellis systems. As an emerging product on architectural decoration and protection, stainless steel rope mesh has provided the mordern architectural decoration and horticulture engineering with a new and stylish element, which are getting more and more appreciated by designeers and clients all over the world.

The specification of stainless steel ferrule rope mesh

Code	Rope Construction	Rope Diameter		Aperture	Breaking Force
Code	Rope Construction	Inch	mm	mm	kN
BR-01	7 × 19	1/8	3.2	120 × 208	7.38
BR-02	7 × 19	1/8	3.2	100 × 173	7.38
BR-03	7 × 19	1/8	3.2	90 × 156	7.38
BR-04	7 × 7	3/32	2.4	100 × 173	4.18
BR-05	7 × 7	3/32	2.4	90 × 156	4.18
BR-06	7 × 7	3/32	2.4	80 × 139	4.18
BR-07	7 × 7	3/32	2.4	70 × 121	4.18
BR-08	7 × 7	5/64	2	100 × 173	3.17
BR-09	7 × 7	5/64	2	90 × 156	3.17
BR-10	7 × 7	5/64	2	80 × 139	3.17
BR-11	7 × 7	5/64	2	70 × 121	3.17
BR-12	7 × 7	1/16	1.6	80 × 139	2.17
BR-13	7 × 7	1/16	1.6	70 × 121	2.17
BR-14	7 × 7	1/16	1.6	60 × 104	2.17
BR-15	7 × 7	1/16	1.6	51 × 87	2.17
BR-16	7 × 7	3/64	1.2	80 × 139	1.22
BR-17	7 × 7	3/64	1.2	60 × 104	1.22
BR-18	7 × 7	3/64	1.2	50 × 87	1.22

Flexible 304/316 Hand Woven Stainless Steel Knotted Wire Rope Cable Mesh for Zoo Security 2
